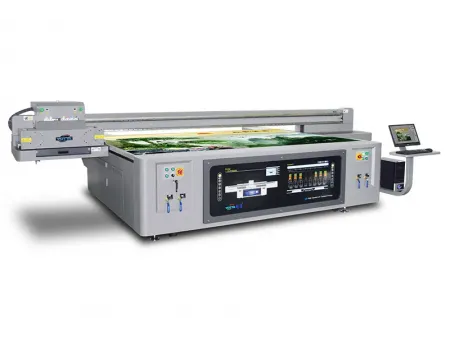

UV Flatbed Inkjet Printer
Request a Quote
YD-F3020KJ
This UV flatbed inkjet printer is designed to handle a diverse range of materials. Whether your project involves printing on glass, ceramic tiles, wood, or more traditional printing surfaces like aluminum and PVC sheets, the YD-F3020KJ adapts seamlessly. It's designed for those who need a reliable tool for creating detailed signage, customized decor, or any large-scale print projects that demand precision and clarity.
- Offers a generous 3.2M×2.0M print area for big projects.
- High-speed Kyocera technology ensures swift, reliable printing.
- Delivers detailed prints with a resolution of 635×2400dpi.
- Supports vibrant, full-color printing directly on various substrates.
Specifications
| Model | YD-F3020KJ |
| Printing size | 3000×2000mm (9.8×6.6 ft) |
| Printhead | Kyocera KJ4A grey level Piezo print head |
| Printhead quantity | 2-8 pcs (4-7 colors optional) |
| Print resolution | 635×2400 dpi |
| Material thickness | Up to 100mm (4in) |
| UV curing system | LED UV lamp |
| Ink type | Original imported UV curable ink |
| Ink color | C, M, Y, K, LC, LM, White ink |
| Interface mode | High speed USB |
| RIP software | Onyx |
| Color management | International standard ICC |
| Input format | PDF, JPEG, TIFF, EPS, AI |
| Printer weight | 1750kg |
| Printer size (L×W×H) | 4996×2800×1360mm (16.4×9.2×4.5ft) |
| Packaging size (L×W×H) | 5250×3000×1680mm (17.2×9.8×5.5ft) |
| Power supply | 220V/AC(±10%), 50/60 HZ, 6 kW |
| Working environment | Separate, less sunlight, ventilated workshop Temperature: 18℃~30℃ (64℉~86℉) Humidity: 30%~70% (non-condensing) Ventilation equipment: suggest overhead exhaust fan (displacement 600 CFM) |
Features
- Powered by Kyocera: Equipped with a high-speed Kyocera printhead to ensure fast, detailed prints every time
- Accommodates large projects: Its large print area is perfect for projects that require a grand scale, from architectural renderings to custom furniture detailing
- Rich color options: Capable of printing on CMYKW and varnish, this printer opens up creative possibilities for finishes, including 3D, embossed, and glossy effects
- Wide material compatibility: It's designed to print on nearly any flat surface, broadening the scope of potential projects
- Simple printing process: Direct-to-substrate printing simplifies the workflow, making it suitable for both unique, one-off designs and larger production runs.
- LED-UV curing: Quick and efficient ink curing ensures lasting quality and durability of the prints.
- Durable structure: Long-lasting parts ensure our printing equipment remains a dependable part of your equipment lineup for a long time
