A800-KIS Pediatric Dental Chair (children dental unit with cartoon fish operating unit) Manufacturer

A800-KIS Pediatric Dental Chair (children dental unit with cartoon fish operating unit)

Request a Quote

View All: http://dentalchair-unit.com/1-1-pediatric-dental-chair.html

Technical parameters

Power supply: AC220V/AC110V 50/60HZ
Input power: 1200W
Fuse specification: RFl-20, Specification: Ф5×20, Rated current: 6.0A
Dental operatory light (cold light) : AC12--24V/6W--10W
X-ray film viewer: AC24V/4W
Water supply thermostat: AC24V/80W temperature: 40℃±5℃
DC motor: DC24V/L3.8A
Dental operatory light color temperature: ≤4500K
Dental operatory light intensity: 7000lux--42000lux
Working air pressure: 0.5--0.8Mpa，Working water pressure: 0.2--0.3Mpa
Pediatric dental chair's Intermittent working system: used for 1 minute with intermittent time of 15 minutes.
Load of dental instrument tray: 1.5KG
Size of pediatric dental chair: 160*110*120 cm
Packed weight: 250KG

Although it doesn't feature the animated bluecat and lovely dinosaur, the A800-KIS pediatric dental chair retains the same decorative style with its smiling apple spittoon and removable mudskipper-shaped unit to relax children receiving treatment. Meanwhile, its harmonious warm-toned design can also hold the patients' attention, making them feel comfortable.
The A800-KIS pediatric dental chair not only can be used by children, but also by teenagers and adults. It helps relax patients of all age, because many adults have psychological fear of seeing a dentist, too.

Component introduction

Spittoon

Spittoon features a smiling apple pattern to distract patient's attention and relax him/her, so it also reduces the difficulty of the dentist's work.
Spittoon is made up of ceramic materials, which makes cleaning and disinfection easier.

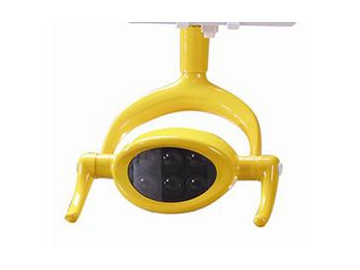

Dental operatory light

Good spotlight and uniform distribution of light spot provide convenience for dentist to observe the status of the patient's oral cavity from all angles.
The light cannot be deviated to patient's eyes because of uniform light pattern.
You can switch on/off the dental operatory light and adjust its intensity by manual or induction mode.

Children entertainment tablet

Entertainment tablet can be installed on the operatory light. Children can forget fear of treatment in some degree when they enjoy their favorite show.
Tablet holder can be 360-degree adjusted according to the patient's view.
Tablet holder can be placed on tablets of different sizes, patients' own tablet can also be used.

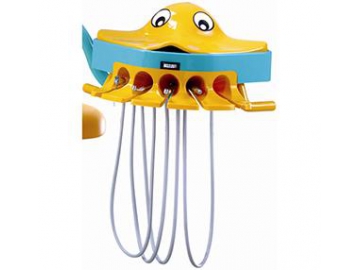

Mudskipper-shaped pusher delivery unit

Dentist can see oral panorama easily because of the ultra-wide panel film viewer inside the treatment unit.
four-hole handpiece tubing uses advanced PU material which is corrosion resistant, high-pressure resistant and aging-resistant.
Three way syringe design provide convenience to wash affected area in patients' oral cavity.

Multifunctional foot control

Dentist can adjust chair's height by using the foot pedal.
Dentist can control water supply of spittoon for mouth rinse cup by using the foot pedal, it can also provide cleaning water.
Multifunctional foot pedal controls water and air supply of the dental handpiece.
Multifunctional foot pedal controls the dental hand piece function of separating water from air.

Standard configurations

Optional configurations

Installation
