Top hammer drilling

Threaded Drill Bits: Empowering Your Drilling Projects

Welcome to Starockdrill, where power and precision combine to redefine drilling excellence. As a company dedicated to delivering high-value solutions in the drilling industry, we invest substantial resources in the design, manufacturing, and processing of our threaded drill bits. Our goal is to provide products that offer exceptional performance, superior quality, and cost-effectiveness. With our state-of-the-art manufacturing facilities and rigorous quality control processes, we ensure that our threaded drill bits exceed expectations.

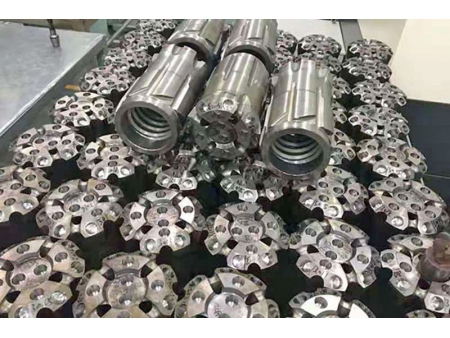

Our threaded drill bits undergo multiple heat treatments and are meticulously machined using advanced CNC machines. This enhances their lifespan and wear resistance, enabling them to perform exceptionally well in extreme rock formations. We utilize premium-grade steel and high-quality tungsten alloys in the manufacturing process, providing the necessary toughness and strength to withstand high impact and pressure environments. Our bits not only offer efficient drilling capabilities but also excel in chip evacuation, maximizing their lifespan and impact strength. With various shank shapes, head designs, and tooth structures, our threaded drill bits can be tailored to meet the specific requirements of different rock formations and drilling depths.

The versatility of our threaded drill bits makes them widely applicable across various industries, including open-pit mining, underground mining, tunneling, anchoring projects, blast furnace tapping, tunnel construction, hydroelectric projects, quarrying, and various other construction projects.

Specifications
R22 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Face Gauge Face (kg)
Number×Diameter Number×Diameter Number Number
32 1 1/4'' 3×8 1×8 1 1 0.3
33 1 9/64'' 5×8 2×7 2 1 0.3
35 1 3/8'' 5×8 2×7 2 1 0.4
R25 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Face Gauge Face (kg)
Number×Diameter Number×Diameter Number Number
35 1 3/8" 5 × 8 2 × 7 2 1 0.45
38 1 1/2" 5 × 9 2 × 7 2 1 0.5
41 1 5/8" 5 × 9 2 × 8 2 1 0.6
42 1 39/64" 5 × 9 2 × 8 2 1 0.65
43 1 11/16" 5 × 9 2 × 8 2 1 0.65
45 1 3/4" 5 × 9 2 × 9 2 1 0.65
48 1 7/8" 5 × 10 2 × 9 2 1 0.68
51 2" 5 × 10 2 × 10 2 1 0.7
57 2 1/4" 5 × 11 2 × 10 2 1 1
45 1 3/4" 6 × 9 3 × 8 1 3 1
51 2" 6 × 10 3 × 9 1 3 1.4
57 2 1/4" 6 × 10 3 × 10 1 3 1.6
38 1 1/2" 4 × 9 2 × 8 1 1 0.5
41 1 5/8" 4 × 9 2 × 9 1 1 0.5
43 1 11/16" 4 × 9 2 × 9 1 1 0.6
41 1 5/8" 5 × 9 2 × 8 2 1 0.78
45 1 3/4" 6 × 9 3 × 8 1 3 1
48 1 7/8" 6 × 10 3 × 9 1 3 1.1
51 2" 6 × 10 3 × 9 - 3 1.35
55 2 11/64" 6 × 11 3 × 9 1 3 1.54
57 2 1/4" 6 × 10 3 × 10 - 3 1.6
64 2 1/2" 8 × 11 4 × 10 1 2 2.2
R28 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Front Gauge Front (kg)
Number×Diameter Number×Diameter Number Number
44 1 47/64" 4 × 10 2 × 9 1 1 0.6
45 1 3/4" 4 × 10 2 × 9 1 1 0.6
48 1 7/8" 4 × 11 2 × 9 1 1 0.7
45 1 3/4" 6 × 9 3 × 8 1 3 1
51 2" 6 × 10 3 × 9 1 3 1.35
R32 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Front Gauge Front (kg)
Number×Diameter Number×Diameter Number Number
43 1 11/16" 4 × 10 2 × 9 1 1 0.55
45 1 3/4" 4 × 11 2 × 9 2 1 0.6
41 1 5/8" 5 × 9 2 × 8 2 1 0.5
45 1 3/4" 5 × 10 2 × 9 2 1 0.7
48 1 7/8" 5 × 10 2 × 9 2 1 0.9
48 1 7/8" 5 × 11 2 × 8 2 1 0.7
51 2" 5 × 11 2 × 9 2 1 1.1
57 2 1/4" 5 × 12 3 × 10 1 1 1.3
60 2 23/64" 5 × 12 3 × 10 1 1 1.4
43 1 11/16" 6 × 9 2 × 8 1 2 0.6
45 1 3/4" 6 × 9 2 × 9 1 2 0.7
48 1 7/8" 6 × 10 2 × 9 1 2 0.7
43 1 11/16" 6 × 9 3 × 8 3 3 0.7
45 1 3/4" 6 × 9 3 × 8 1 3 0.8
45 1 3/4" 6 × 10 3 × 8 1 3 0.8
48 1 7/8" 6 × 10 3 × 8 1 3 0.9
51 2" 6 × 10 3 × 9 1 3 1.1
51 2" 6 × 10 2 × 10 2 2 1.1
57 2 1/4" 6 × 11 2 × 10 1 3 1.3
64 2 1/2" 6 × 12 3 × 11 2 1 1.6
64 2 1/2" 6 × 12 4 × 10 1 2 1.6
64 2 1/2" 8 × 10 4 × 10 2 2 1.6
76 3'' 8 × 11 4 × 11 2 2 2.8
89 3 1/2" 8 × 12 4 × 12 - 2 2.9
89 3 1/2" 6 × 14 4 × 12 1 3 2.9
45 1 3/4" 6 × 9 3 × 8 1 3 0.9
48 1 7/8" 6 × 10 3 × 9 1 3 1.1
51 2" 6 × 10 3 × 9 - 3 1.2
57 2 1/4" 6 × 10 3 × 10 - 3 1.7
64 2 1/2" 6 × 11 3 × 10 1 2 2.2
60 2 23/64" 8 × 10 4 × 9 1 2 1.7
64 2 1/2" 8 × 10 4 × 10 2 2 1.9
76 3" 8 × 12 4 × 11 2 2 2.2
76 3" 8 × 11 4 × 11 - 4 3.3
R35 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Front Gauge Front (kg)
Number×Diameter Number×Diameter Number Number
43 1 11/16" 5 × 9 2 × 9 2 1 0.7
45 1 3/4" 6× 10 3 × 8 1 3 0.8
48 1 7/8" 6× 10 3 × 9 1 3 0.8
51 2" 6× 10 3 × 9 1 3 0.9
51 2" 8 × 9 3 × 9 2 1 1.6
54 2 1/8" 8 × 9 3 × 9 2 1 1.8
54 2 1/8" 6 × 10 3 × 9 1 3 1.3
R38 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Front Gauge Front (kg)
Number×Diameter Number×Diameter Number Number
64 2 1/2" 6 × 12 3 × 11 - 3 1.6
64 2 1/2" 6 × 12 4 × 10 1 2 1.6
64 2 1/2" 8 × 11 4 × 10 1 2 1.6
76 3" 6 × 12 4 × 11 1 2 2.8
64 2 1/2" 8 × 10 4 × 10 - 2 1.7
76 3" 8 × 12 4 × 12 1 2 1.9
89 3 1/2" 7 × 13 5 × 12 1 3 2.3
76 3" 6 × 13 3 × 11 1 3 1.9
89 3 1/2" 6 × 13 3 × 11 1 3 3.3
64 2 1/2" 8 × 10 4 × 10 2 2 1.9
76 3" 8 × 12 4 × 11 2 2 2.2
64 2 1/2" 6 × 11 3 × 10 1 2 1.9
64 2 1/2" 6 × 11 3 × 10 1 2 1.9
64 2 1/2" 8 × 10 4 × 10 1 4 1.9
66 2 19/32″ 6 × 11 3 × 10 1 2 1.9
70 2 3/4" 8 × 10 4 × 10 1 4 2.4
76 3" 8 × 11 4 × 11 - 4 3.3
89 3 1/2" 8 × 12 4 × 12 1 4 5.3
89 3 1/2" 8 × 12 4 × 11 1 4 5.3
T38 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Front Gauge Front (kg)
Number×Diameter Number×Diameter Number Number
60 2 23/64" 5 × 12 3 × 10 1 1 1.6
64 2 1/2" 6 × 12 3 × 10 3 0 1.6
76 3" 6 × 12 3 × 12 2 1 2.5
64 2 1/2" 8 × 10 4 × 10 - 2 1.7
76 3" 8 × 12 4 × 12 1 2 2.6
89 3 1/2" 7 × 13 5 × 12 1 3 3.3
89 3 1/2" 8 × 13 5 × 12 2 2 3.3
89 3 1/2" 8 × 13 6 × 12 2 2 3.3
89 3 1/2" 9 × 12 6 × 12 1 3 3.3
102 4" 8 × 14 7 × 12 1 2 4.7
64 2 1/2" 6 × 11 3 × 10 1 3 1.7
70 2 3/4" 6 × 12 3 × 10 1 3 2.2
76 3" 6 × 13 3 × 11 1 3 2.3
89 3 1/2" 6 × 13 3 × 11 1 3 3.3
64 2 1/2" 8 × 10 4 × 10 1 4 1.7
76 3" 8 × 11 4 × 11 - 4 2.7
89 3 1/2" 8 × 12 4 × 11 1 4 3.3
89 3 1/2" 8 × 12 4 × 12 - 4 3.3
102 4" 8 × 12 4 × 12 1 4 4.7
102 4" 8 × 13 4 × 12 - 4 4.7
64 2 1/2" 8 × 10 4 × 10 2 2 1.9
76 3" 8 × 12 4 × 11 2 2 2.2
64 2 1/2" 6 × 11 3 × 10 1 2 1.9
64 2 1/2" 6 × 11 3 × 10 1 2 1.9
64 2 1/2" 8 × 10 4 × 10 1 4 1.9
70 2 3/4" 8 × 10 4 × 10 1 4 2.4
65 2 9/16" 6 × 12 4 × 10 1 2 3.1
T45 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Front Gauge Front (kg)
Number×Diameter Number×Diameter Number Number
76 3" 8 × 12 4 × 11 2 2 2.4
76 3" 8 × 12 4 × 12 1 2 2.6
89 3 1/2" 7 × 13 5 × 12 1 3 3.5
89 3 1/2" 8 × 13 5 × 12 2 2 3.7
89 3 1/2" 8 × 13 6 × 13 - 2 3.7
102 4" 8 × 14 7 × 12 2 2 5
102 4" 9 × 12 6 × 12 - 2 5
115 4 1/2" 9 × 14 7 × 13 1 3 6.8
115 4 1/2" 8 × 16 7 × 13 2 2 6.8
76 3" 6 × 13 3 × 11 1 3 2.4
76 3" 8 × 12 4 × 11 - 4 2.6
89 3 1/2" 8 × 12 4 × 12 - 4 3.6
89 3 1/2" 8 × 12 4 × 12 - 4 3.7
102 4" 8 × 12 4 × 12 - 4 4.7
102 4" 8 × 13 4 × 12 - 4 4.7
76 3" 8 × 12 4 × 11 2 2 2.2
89 3 1/2" 8 × 13 5 × 12 2 2 5.2
102 4" 9 × 12 6 × 12 - 3 6.5
115 4 1/2" 9 × 14 7 × 13 - 3 10
115 4 1/2" 9 × 14 6 × 13 - 3 10
76 3" 8 × 11 4 × 11 - 4 3.2
89 3 1/2" 8 × 12 4 × 12 1 4 5.4
102 4" 8 × 12 4 × 12 - 4 7.8
102 4" 8 × 13 4 × 12 - 4 7.8
115 4 1/2" 8 × 14 4 × 13 - 4 7.8
76 3" 8 × 13 4 × 11 1 4 3.5
89 3 1/2" 8 × 12 4 × 12 1 4 4.7
T51 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Front Gauge Front (kg)
Number×Diameter Number×Diameter Number Number
89 3 1/2" 6 × 16 4 × 13 - 2 4.5
102 4" 6 × 16 4 × 14 - 2 5.8
89 3 1/2" 7 × 13 5 × 12 1 3 2.7
89 3 1/2" 9 × 12 6 × 12 1 3 4.9
89 3 1/2" 8 × 13 5 × 12 2 2 4.9
89 3 1/2" 8 × 13 6 × 12 - 2 4.9
102 4" 8 × 14 7 × 12 2 2 5.8
102 4" 8 × 16 6 × 13 2 2 6
115 4 1/2" 9 × 14 7 × 13 1 3 6.8
115 4 1/2" 8 × 16 7 × 13 2 2 6.8
127 5" 8 × 16 9 × 12 - 2 7.5
89 3 1/2" 9 × 11 6 × 10 - 2 4.6
102 4" 9 × 12 7 × 12 - 3 5.9
102 4" 9 × 12 6 × 12 - 3 5.8
115 4 1/2" 9 × 14 7 × 13 1 3 6.6
127 5" 9 × 14 7 × 13 - 3 7.5
127 5" 9 × 14 8 × 14 - 3 8.4
152 6" 9 × 16 11 × 14 - 3 11.1
89 3 1/2" 8 × 12 4 × 11 - 4 4.6
89 3 1/2" 8 × 12 4 × 12 1 4 4.5
102 4" 8 × 12 4 × 12 - 4 4.7
115 4 1/2" 8 × 14 4 × 13 1 4 6.8
127 5" 8 × 14 4 × 14 - 4 7.5
165 6 1/2" 9 × 16 9 × 14 - 3 14.4
178 7" 9 × 16 9 × 16 - 3 15.1
89 3 1/2" 8 × 12 4 × 12 - 4 3.6
102 4" 9 × 13 4 × 13 - 4 4.1
115 4 1/2" 9 × 13 4 × 13 - 4 6.3
127 5" 8 × 16 6 × 14 - 4 7.4
152 6" 8 × 18 6 × 16 - 4 12
89 3 1/2" 8 × 13 5 × 12 2 2 4.6
102 4" 8 × 14 7 × 12 1 2 7.1
102 4" 9 × 12 6 × 12 - 3 7.1
115 4 1/2" 9 × 14 7 × 13 - 3 10
115 4 1/2" 9 × 14 6 × 13 - 3 10
127 5" 9 × 14 7 × 13 - 3 13
89 3 1/2" 8 × 12 4 × 11 1 4 5.3
89 3 1/2" 8 × 12 4 × 12 1 4 5.4
102 4" 8 × 12 4 × 12 - 4 7.8
102 4" 8 × 13 4 × 12 - 4 7.8
115 4 1/2" 8 × 14 4 × 13 - 4 7.8
115 4 1/2" 8 × 14 4 × 14 - 4 7.8
115 4 1/2" 8 × 14 4 × 14 - 4 10
89 3 1/2" 9 × 11 3 × 11 1 3 4.8
102 4" 9 × 12 3 × 12 1 3 6.9
110 4 21/64″ 9 × 14 6 × 12 - 3 10
127 5" 8 × 16 4 × 14 - 4 13.5
102 4" 8 × 14 4 × 13 - 2 10.1
115 4 1/2" 9 × 14 6 × 12 - 3 12
ST58 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Front Gauge Front (kg)
Number×Diameter Number×Diameter Number Number
89 3 1/2" 8 × 14 6 × 12 - 2 4.1
89 3 1/2" 8 × 12 4 × 12, - 4 8.9
89 3 1/2" 10 × 12 4 × 12 - 4 5
115 4 1/2" 10 × 14 4 × 14 - 4 10
ST68 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Front Gauge Front (kg)
Number×Diameter Number×Diameter Number Number
102 4" 8 × 16 5 × 14 - 2 9.4
102 4" 10 × 12 4 × 12 - 4 9.5
115 4 1/2" 10 × 14 4 × 14 - 4 10.8
152 6" 9 × 16 8 × 16 - 3 16
102 4" 10 × 12 4 × 12 - 4 9.3
115 4 1/2" 10 × 14 4 × 14 - 4 10
GT60 Threaded Button Bits
Shape Bit diameter Buttons Flushing hole Weight
mm inch Gauge Front Gauge Front (kg)
Number×Diameter Number×Diameter Number Number
92 3 5/8" 8 × 14 4 × 12 - 4 4.1
96 3 25/32" 8 × 14 4 × 12 - 4 6
102 4" 9 × 13 9 × 11 - 2 7
115 4 1/2" 9 × 14 10 × 12 - 2 9.4
127 5" 9 × 16 10 × 14 - 2 9.6
140 5 1/2" 9 × 16 10 × 14 - 2 10.5
152 6" 9 × 16 12 × 14 - 3 15
92 3 5/8″ 9 × 12 9 × 12 - 2 5.1
96 3 25/32″ 9 × 12 9 × 12 - 2 6.5
102 4" 9 × 13 10 × 12 - 2 8.5
115 4 1/2" 9 × 14 10 × 12 - 3 10.8
127 5" 9 × 16 10 × 14 - 3 15
140 5 1/2" 9 × 16 10 × 14 - 3 15
152 6" 9 × 16 12 × 16 - 3 20
115 4 1/2" 9 × 16 6 × 13 - 3 15
Features
  • High-speed impact capability for faster drilling and efficient rock breaking.
  • High-performance design for increased drilling distance, enhancing drilling efficiency and productivity.
  • Customizable optimization based on different rock formations to ensure efficient drilling operations.
  • High-strength alloy steel bodies with special heat treatment processes, ensuring fracture rates below 0.5% and ensuring drilling safety.
  • CNC machining and alloy tooth assembly processes, resulting in tooth loss rates below 0.5%, improving drilling stability and reliability.
