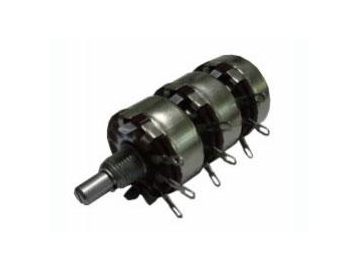

30mm Metal Shaft Multi-Gang Rotary Potentiometer, WTH118-3
Request a Quote
Part Number
WTH118-3
Parameters
| Diameters | 30mm |
| Total rotational angle | 260°±10° |
| Rotational torque | 10~200gf.cm |
| Stopper strength | ≥4kgf |
| Number of resistor elements | triple-unit |
| Total resistance | 50Ω-2MΩ |
| Resistance tolerance | ±10% |
| Shaft Types | round shaft |
| Element | carbon |
| Rated power | ≤2W |
| Voltage proof | 500V AC for 1 minute |
| Operating life | ≥10000 cycles |
