Automatic Duplex Gang Slitter

Automatic Duplex Gang Slitter
Automatic Duplex Gang Slitter
Automatic Duplex Gang Slitter
Automatic Duplex Gang Slitter
Automatic Duplex Gang Slitter
Request a Quote

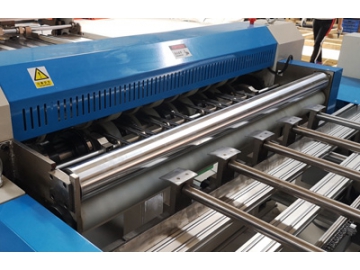

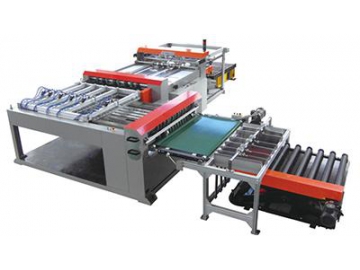

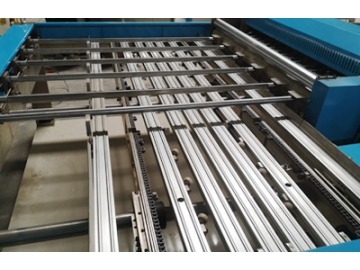

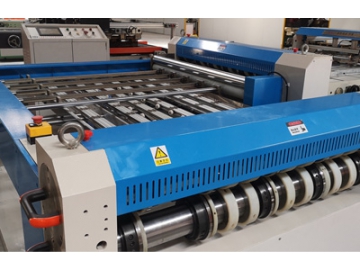

This automatic duplex gang slitter is specially designed equipment for slitting tinplate with high precision. It is excellent ancillary equipment for high speed resistance welding machines and is perfect for can-making operations. The machine is controlled by three sets of servo motors which have been manufactured by a trusted brand. The machine offers the advantages of high automation, precision, flexible slitting parameters, and it features an easy to use touch screen. Its circular knives are products from a hard alloy that adds to its slitting precision and extends its working lifetime.

Technical Specifications
Slitting speed 32piece/min
Sheet width 600~1200mm
Sheet thickness 0.15~0.5mm
Slitting diagonal tolerance ≤0.05mm
Max 1st slitting quantity 6 strips
Max 2nd slitting quantity 12 strips
Number of cutter 1st: 5 pairs, 2nd: 8 pairs
Total Power 10KW
Dimension (L×W×H) 6650×3800×1600mm
Compressed air 0.6MPa, 12 L/min
