Metals for high-temperature applications

Your Trusted Source for High Temperature Alloy Manufacturing

High-temperature alloys, often based on nickel, cobalt, or iron, are designed for extreme conditions. Known for their exceptional mechanical properties and corrosion resistance, these alloys perform excellently under high stress and high temperature.

Available grades: A-286, Nimonic75 / 80A / 90, GH131, GH1140, GH36, GH2706, GH2901, GH3625, GH3536, GH4169

Retain good tensile strength and ductility even at extremely high temperatures
Suitable for long-term use in oxidizing environments without significant performance degradation
Resistant to deformation under prolonged high-temperature stress
Better durability for applications subject to repeated loading
Maintain dimensional stability and mechanical performance across a wide temperature range
Despite high performance, can still be cold and hot worked and welded

Aerospace: Aircraft engine parts (e.g., turbine blades, combustion chambers), rocket engine components
Energy industry: High-temperature components in gas turbines and steam turbines such as blades and rotors
Petrochemical: High-temperature, high-pressure equipment in refineries, such as reactors and heat exchangers
Automotive industry: High-performance exhaust systems, turbochargers, and other high-temperature parts
Nuclear industry: Reactor components and other equipment designed for high-temperature conditions
Metallurgy and casting: Furnace and heating element tools and equipment that require high-temperature resistance
Glass manufacturing and ceramics industry: Furnace structural components, conveyor belts, and other high-temperature processing equipment

Product Forms

High Temperature Alloy Wire

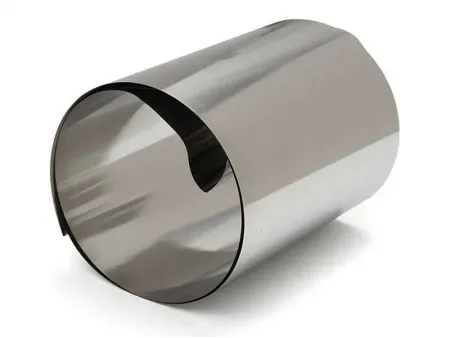

High Temperature Alloy Strip

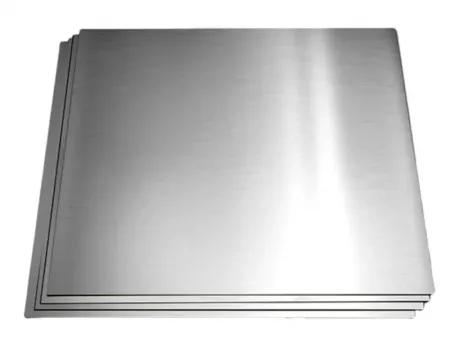

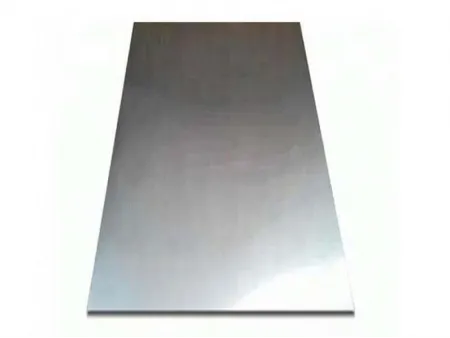

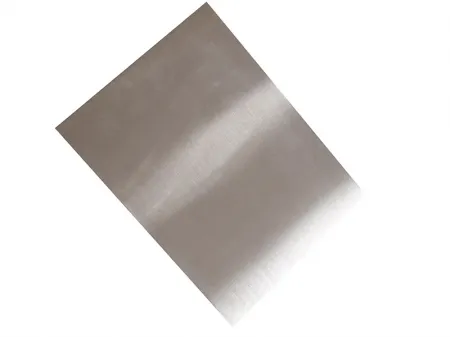

High Temperature Alloy Plate/Sheet

High Temperature Alloy Tube

Chemical Composition

Alloy Grades	%	Copper (Cu)	Iron (Fe)	Nickel (Ni)	Chromium (Cr)	Carbon (C)	Silicon (Si)	Manganese (Mn)	Phosphorus (P)	Sulfur (S)	Titanium (Ti)	Molybdenum (Mo)	Vanadium (V)	Aluminum (Al)	Cobalt (Co)	Boron (B)	Zirconium (Zr)	Lead (Pb)	Bismuth (Bi)	Silver (Ag)	Tungsten (W)	Cerium (Ce)	Niobium (Nb)
A-286	Min.		Rest	24	13.5						1.9	1	0.1			0.001
A-286	Max.		Rest	27	16	0.08	1	2	0.04	0.03	2.35	1.5	0.5	0.35		0.01
80A	Min.			Rest	18						1.8			1
80A	Max.		3	Rest	21	0.1	1	1	0.02	0.015	2.7			1.8	2	0.008	0.15
Nimonic 90	Min.				18						2			1	15
Nimonic 90	Max.	0.2	1.5	Rest	21	0.13	1	1		0.015	3			2	21	0.02	0.15	0.002	0.0001	0.0005
GH1140			Rest	35.0-40.0	20.0-23.0	0.06-0.12	≤0.80	≤0.07	≤0.025	≤0.015	0.70-1.20	2.00-2.50		0.20-0.60							1.40~1.80	≤0.05
GH3625			≤0.5	Rest	20-23	≤0.1		3.15-4.15			≤0.4	8-10		≤0.4	≤1.0
GH3536				Rest	20.5-23	0.05-0.15					≤0.15	8-10		≤0.5	0.5~2.5						0.2~1
GH4169		≤0.3	Rest	50-55	17-21	≤0.08	≤0.35	≤0.35		≤0.01	0.7-1.15	2.8-3.3		0.2-0.8	≤1.0								4.75~5.5

Physical & Mechanical Properties

Alloy Grades	Density (g/cm³)	Melting Point (°C)	Electrical Resistivity (μΩ·m)	Coefficient of Lines Expansion (α×10⁻⁶/20~1000ºC)	Tensile Strength (Rm N/mm²)	Yield Strength (Rp 0.2N/mm²)	Elongation at Break A5 (%)	Brinell Hardness (HBS)	Thermal Conductivity λ (W/m·℃)	Specific Heat (J/kg·°C)	Modulus of Elasticity (GPa)	Shear Modulus (GPa)	Poisson's Ratio
A-286	7.99	1364-1424℃	0.914	15.7
80A	8.19	1320-1365			930	620	20
Nimonic 90	8.20	1400
GH1140
GH3625	8.44	1290-1350	1.28	12.3	830	410	30	≤290	12.1(100℃)	430	205	79
GH3536
GH4169	8.24	1260-1320		11.8	930	620	20	≥363	14.7(100℃)	435	199.9	77.2	0.3
