Elastomeric Alloy
Request a Quote
Elastic alloys
Your Trusted Source for Precision Alloy Manufacturing
Elastomeric alloys are a unique material that combines the elasticity of rubber with the durability and strength of traditional metals or rigid polymers. These materials, also known as thermoplastic elastomers (TPE) or elastomeric composites, offer flexibility, resilience, and adaptability across various applications.
Available grades: 3J01, 3.21, 3J53
- Ability to revert to its preset original shape upon heating
- Can withstand significant deformation within a certain temperature range without permanent change
- Capable of storing and releasing large amounts of mechanical energy
- Lighter than traditional materials, yet just as strong
- Particularly suitable for medical implants
- Aerospace: Expandable antennas, solar panel hinges, and more
- Automotive: Airbag trigger mechanisms, seat adjustment systems, etc.
- Medical equipment: Vascular stents, neurostimulators, and more
- Consumer electronics: Flexible components in wearable devices
Product Forms
Elastomeric Alloy Rod

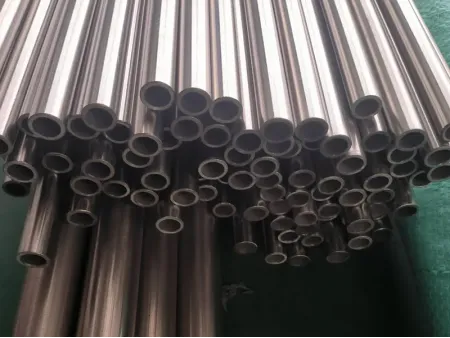

Elastomeric Alloy Tube

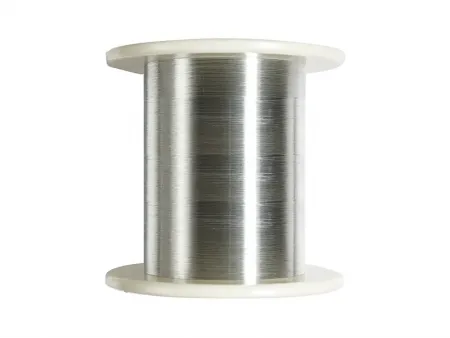

Elastomeric Alloy Wire
Elastomeric Alloy Strip
- Plate / Sheet
- Thickness: 0.1mm-5.0mm
- Width: 50mm-1000mm
- Length: 500mm-3000mm
- Strip
- Thickness: 0.02mm-1.5mm
- Width: 3mm-500mm
- Delivery Forms: Bright shiny, cold rolled or hot rolled
- Rod
- Diameter: Ø5mm-Ø80mm
- Length: 100mm-2000mm
- Wire
- Diameter: Ø0.03mm-Ø5mm
- Delivery Forms: Bright shiny, supplied in spools
- Tube
- Outer Diameter: Ø3mm-Ø100mm
- Wall Thickness: 0.5mm-10mm
- Length: 100mm-6000mm
Physical & Mechanical Properties
| Grades | Density (g/cm³) | Electrical Resistivity (10⁻⁶ Ω·cm) | Thermal Conductivity (W/m·K) | Modulus of Elasticity (GPa) | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation at Break (%) | Elastic Limit (MPa) | Fatigue Life (cycles) | Working Temperature Range (°C) | Temperature Coefficient |
| | 8.1 | 80 | 11 | 144 | 800 | 1000 | 10 | 800 | >10⁷ | -60 to 200 | Extremely low temperature coefficient of elasticity |
| | 8.3 | 120 | 40 | 125 | 300 | 600 | 20 | 300 | >10⁷ | -40 to 150 | Elasticity remains constant with minimal temperature sensitivity |
| | 8.2 | 100 | 15 | 180 | 1100 | 1400 | 5 | 1100 | >10⁶ | -200 to 500 | Maintains high strength even at elevated temperatures |
