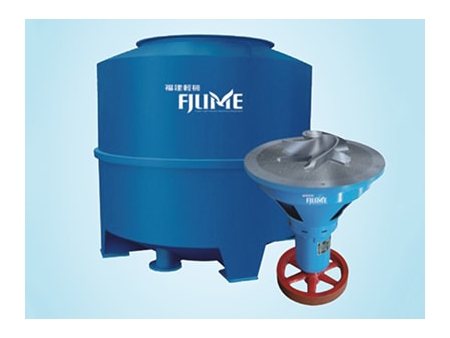

M.C. Hydrapulper

Request a Quote

View All: http://fjlime.com/1-12-m-c-hydrapulper.html

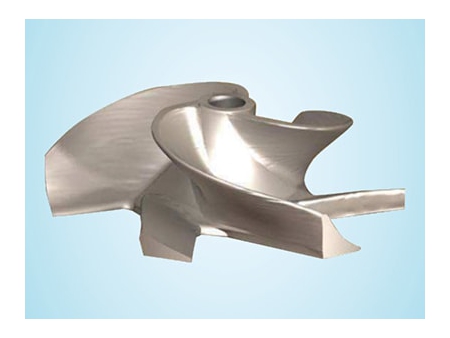

(with S-Type Rotor)

Application

The M.C. hydrapulper is designed with S-type rotor. It is used to pulp the paper with high wet strength, such as broken paper, grease proof paper, non-woven paper, coated paper, pulp sheet, recovered paper(waste paper), etc.

Features

This paper machine can be applied in different processes of fiber.
A wide range of applications
Optimized rotor structure
Medium consistency pulp machine
Low power consumption compared with other similar paper pulpers

Specifications

Model	Capacity (t/24h)	Effective Volume (m³)	Rotor Diameter (mm)	Rotor Type	Stock Consistency (%)	Hole Size (mm)	Motor Power (KW)
ZDS201	5 ~ 10	1	Φ 550	S-Type Rotor	5 ~ 7	OCC Φ 10 ~ 12 ONP Φ 16	22
ZDS202	25 ~ 40	2.5	Φ 550				45
ZDS205	30 ~ 50	5	Φ 550				55
ZDS208	40 ~ 60	8	Φ 750				75
ZDS210	50 ~ 70	10	Φ 750				110
ZDS215	80 ~ 120	15	Φ 1100				160
ZDS220	100 ~ 180	20	Φ 1100				200
ZDS225	150 ~ 230	25	Φ 1100				220
ZDS230	180 ~ 280	30	Φ 1300				250
ZDS240	240 ~ 370	40	Φ 1300				280
ZDS250	300 ~ 500	50	Φ 1500				355
