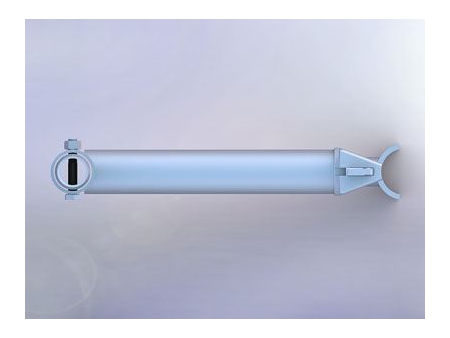

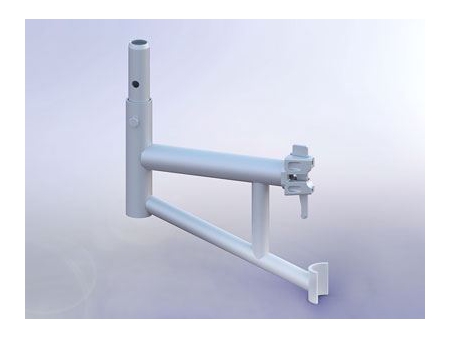

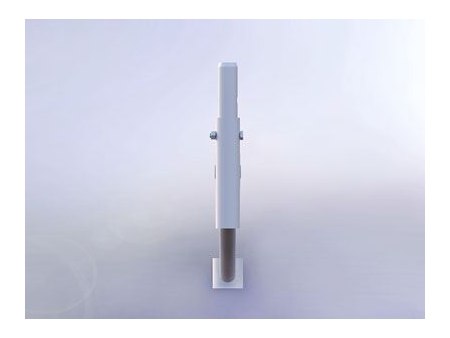

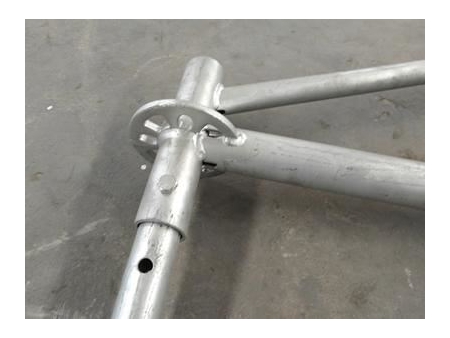

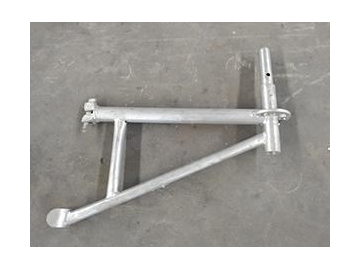

Scaffold Side Bracket
Request a Quote
With a diverse range of scaffolding accessories available, we offer ringlock scaffolding solutions adapted to your construction and maintenance projects
Scaffold Ringlock System
Scaffold side brackets offer an extension to the working face. A platform can be laid on the side bracket in order to allow for construction processes closer to a building façade. The bracket is hot dip galvanized.
Parameters| Item No. | Ref. No. | Description | Height | Weight | Packaging | |||
| Meters | Feet | kg | lbs | Qty. | Type | |||
| RL0642 | Side Bracket | 0.31 | 1' | 1.83 | 4.03 | 110 | Rack | |
| RL1523 | Side Bracket | 0.65 | 2'-2" | 5.95 | 13.11 | 66 | Rack | |
| RL1490 | Side Bracket | 0.732 | 2-5" | 6.39 | 14.07 | 50 | Rack | |
| RL1524 | Side Bracket | 0.88 | 2-10-5/8" | 7.33 | 16.15 | 50 | Rack | |
| RL0270 | Side Bracket | 0.914 | 3' | 7.5 | 16.52 | 50 | Rack | |
| RL1525 | Side/Console Bracket O-Type | 1.065 | 3'-6” | 11.9 | 26.21 | 24 | Rack | |
| RL1491 | Side/Console Bracket O-Type | 1.09 | 3'-7" | 12.08 | 26.61 | 24 | Rack | |
| RL1526 | Side/Console Bracket O-Type | 1.15 | 3'-10” | 12.5 | 27.53 | 24 | Rack | |
