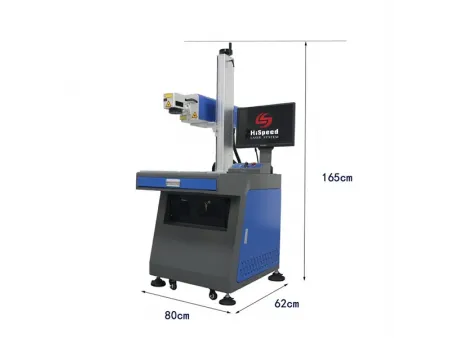

CO₂ Laser Engraving Machine 30W/60W
- Laser Power: 30W / 60W
- Laser Wavelength: 10.6μm
- Repeat Precision : ±0.01mm
- Engraving Depth : ≤2/ ≤3/ ≤5/ ≤8mm
The desktop CO₂ laser marking machine features a compact, 'integrated equipment and workstation' design. Its body height and operating angle strictly adhere to ergonomic standards, eliminating the need for an additional workbench. It can seamlessly integrate into production lines or small workshops, boosting space utilization by over 50%. The equipment supports precise marking of text, serial numbers, QR codes, and high-precision logos, adapting to a wide range of non-metallic materials. It meets the stringent requirements for industrial-grade product traceability while also providing personalized identification for scenarios like gift packaging and art customization, truly achieving 'multi-functional, precise, and efficient' performance.
Suitable for marking, cutting, and drilling various non-metallic materials, such as wood, paper, fabric, acrylic, leather, plastic, rubber, resin, ceramics, coated materials, stone, and more.
| Model | |
| Laser Power | 30Watt/60Watt/ |
| Laser Generator | RF CO2 Metal Tube |
| Laser Wavelength | 10.6μm |
| Engraving Line Speed | ≤5000mm/s |
| Repeat Precision | ±0.01mm |
| Minimum Line Width | 0.1mm |
| Minimum Character | 0.4mm |
| Marking The Maximum Height | 300mm |
| Power Supply | 220V50Hz |
| Engraving Depth | ≤2mm/ ≤3mm/ ≤5mm/ ≤8mm |
| Cooling System | Air cooling sysem |
| Instructions | Users manuel and Video instruction |
| Power Consumption | 500W |
| Repeat Frequency | 20-100KHz |
| Standard Engraving Range | Within 300*300mm |
RF CO₂ laser
Features high electro-optical conversion efficiency, requires virtually no maintenance, and is suitable for high-volume production needs; supports multiple wavelengths (e.g., 10.6μm, 9.3μm).
Galvo scanner
The galvo scanner boasts fast scanning speeds, reaching tens of thousands of scans per second; it features a sealed design for long lifespan and low maintenance costs. Electromagnetic or piezoelectric drive methods reduce mechanical wear, further enhancing the equipment's durability and reliability.
Field Lens
Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures a excellent throughput and durability with less than 1% distortion.
Column
Supports various working area options (e.g., 110×110mm, 150×150mm, etc.), meeting diverse marking requirements. The Z-axis, through precise mechanical design and control systems, ensures accurate laser focus alignment at different heights for stable and reliable marking results.
- CO₂ laser
- Laser control cabinet
- Work panel
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Computer
- Power cord
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Water chiller (for 60w and above)
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
