Request a Quote
Perkins Engine Series

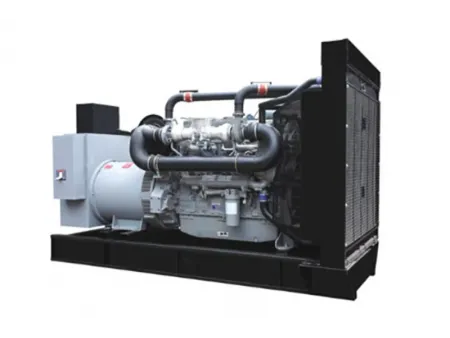

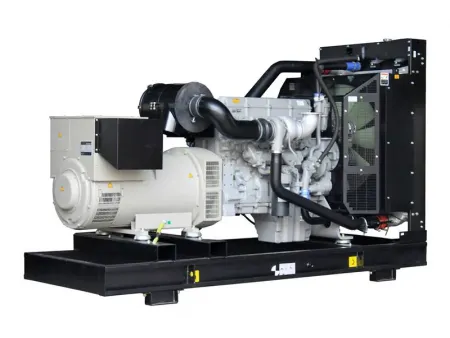

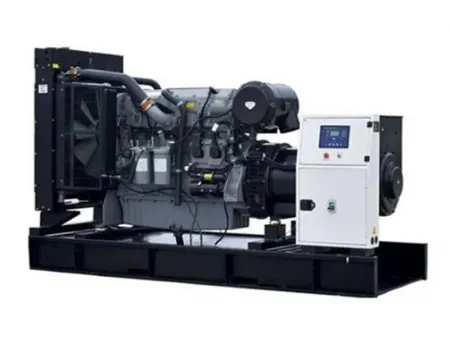

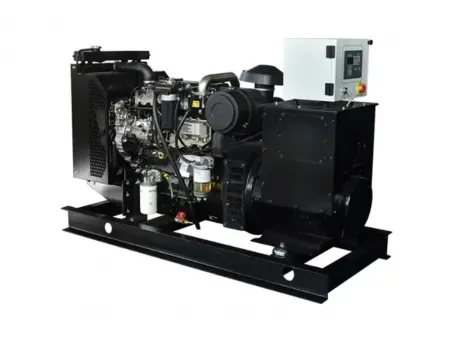

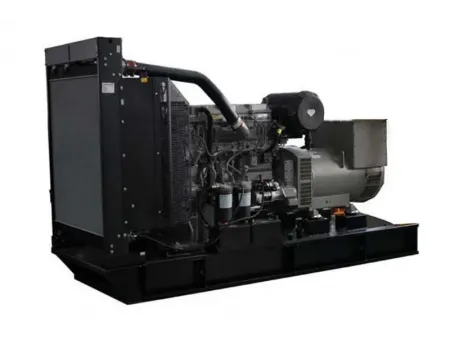

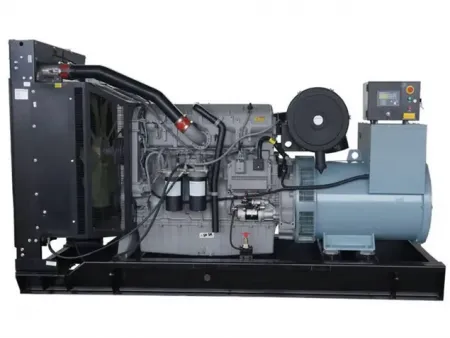

Powered by Perkins diesel engine

Our Perkins engine series diesel generator sets come in multiple configurations to suit diverse customer needs, featuring advanced European and American technologies and high-strength, wear-resistant materials for superior quality. Highly regarded in the international market, these generator sets are perfect for both primary and backup power solutions.
Below are the specifications for the 20-65KW Perkins engine series generator sets.

20kW/25kVA

Diesel Generator Set with Perkins Engine, DB-20GF

  • Prime power: 20kW/25kVA
  • Standby power: 22kW/28kVA
  • Rated current: 36A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Perkins 404D-22TG
  • Alternator: Stamford/Leroy Somer/Engga (optional)
  • No. of cylinders: 4

24kW/30kVA

Diesel Generator Set with Perkins Engine, DB-24GF

  • Prime power: 24kW/30kVA
  • Standby power: 26kW/33kVA
  • Rated current: 43A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Perkins 1103A-33G
  • Alternator: Stamford/Leroy Somer/Engga (optional)
  • No. of cylinders: 3

36kW/45kVA

Diesel Generator Set with Perkins Engine, DB-36GF

  • Prime power: 36kW/45kVA
  • Standby power: 40kW/50kVA
  • Rated current: 65A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Perkins 1103A-33TG1
  • Alternator: Stamford/Leroy Somer/Engga (optional)
  • No. of cylinders: 3

48kW/60kVA

Diesel Generator Set with Perkins Engine, DB-48GF

  • Prime power: 48kW/60kVA
  • Standby power: 53kW/66kVA
  • Rated current: 108A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Perkins 1103A-33TG2
  • Alternator: Stamford/Leroy Somer/Engga (optional)
  • No. of cylinders: 3

50kW/63kVA

Diesel Generator Set with Perkins Engine, DB-50GF

  • Prime power: 50kW/63kVA
  • Standby power: 55kW/69kVA
  • Rated current: 90A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Perkins1104A-44TG1
  • Alternator: Stamford/Leroy Somer/Engga (optional)
  • No. of cylinders: 4

64kW/80kVA

Diesel Generator Set with Perkins Engine, DB-64GF

  • Prime power: 64kW/80kVA
  • Standby power: 70kW/88kVA
  • Rated current: 115A
  • Rated voltage: 400V/230V Customized
  • Frequency: 50Hz
  • Engine: Perkins 1104C-44TAG1
  • Alternator: Stamford/Leroy Somer/Engga (optional)
  • No. of cylinders: 4
Speed: 1500rpm
