20kW-1800kW Diesel Generator Sets
Request a Quote

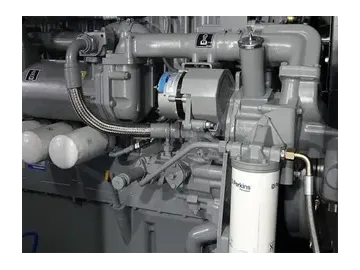

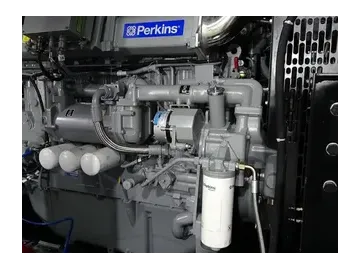

Powered by Perkins diesel engines
Our Perkins engine series diesel generator sets are enhanced by Perkins Diesel engine, with power potential ranging from 25kVA to 2500kVA. This series is known for its economic value, reliability, low fuel consumption, and stable performance. These generator sets are easy to maintain, cost-effective to operate, and produce low emissions (compliant with Euro/EPAII, III standards). The sets can withstand temperatures up to 50 degrees and feature easily accessible parts for straightforward maintenance.
Key Specs
- Power Range: 20-1800kW
- Fuel Type: Diesel
- Frequency: 50 & 60HZ
- Build Type: Silent Generator & Open Generator
Standards
The Perkins series diesel generator sets are in line with multiple standards including ISO9001, ISO14001, ISO45001, GB/T2820, ISO8525 & CE.
We offer a variety of Perkins series diesel generator sets with different power capacities.
50Hz Selection Table
| Genset Model | Generating Set Output | Perkins Engine Model | Size | ||||
| Prime Power | Standby Power | Dimension( L x W x H:mm ) | Weight( kg ) | ||||
| KW | KVA | KW | KVA | ||||
| 20 | 25 | 22 | 28 | 404D-22TG | 1450X730X1000 | 600 | |
| 24 | 30 | 26.4 | 33 | 1103A-33G | 1500×730×1150 | 800 | |
| 36 | 45 | 40 | 44 | 1103A-33TG1 | 1600X730X1200 | 900 | |
| 50 | 63 | 55 | 69 | 1103A-33TG2 | 1750×750×1250 | 1030 | |
| 60 | 75 | 66 | 83 | 1104A-44TG1 | 1950×750×1250 | 1050 | |
| 64 | 80 | 70.4 | 88 | 1104A-44TG2 | 1950×750×1250 | 1100 | |
| 100 | 125 | 110 | 138 | 1104C-44TAG2 | 1950×750×1250 | 1250 | |
| 100 | 125 | 132 | 165 | 1106A-70TG1 | 2400×850×1400 | 1700 | |
| 120 | 150 | 132 | 165 | 1106A-70TAG2 | 2400×850×1400 | 1780 | |
| 140 | 175 | 150 | 188 | 1106A-70TAG3 | 2400×850×1400 | 2200 | |
| 150 | 188 | 165 | 206 | 1106A-70TAG4 | 2400×850×1400 | 2250 | |
| 180 | 225 | 165 | 206 | 1506A-E88TAG2 | 2600×1050×1600 | 2380 | |
| 200 | 250 | 220 | 275 | 1506A-E88TAG3 | 2600×1050×1600 | 2400 | |
| 250 | 313 | 275 | 344 | 1506A-E88TAG5 | 2600×1050×1600 | 2500 | |
| 280 | 350 | 308 | 385 | 2206C-E13TAG2 | 3150×1200×2000 | 3450 | |
| 320 | 400 | 352 | 440 | 2206C-E13TAG3 | 3250X1200X2000 | 3500 | |
| 364 | 455 | 400 | 500 | 2506C-E15TAG1 | 3500×1200×2050 | 3600 | |
| 400 | 500 | 440 | 550 | 2506C-E15TAG2 | 3500×1200×2050 | 3700 | |
| 473 | 591 | 520 | 650 | 2806C-E18TAG1A | 3500×1300×2100 | 4000 | |
| 520 | 650 | 572 | 715 | 2806A-E18TAG2 | 3500×1300×2100 | 4600 | |
| 600 | 750 | 660 | 825 | 2806A-E18TTAG5 | 3900×1550×2100 | 4900 | |
| 640 | 800 | 704 | 880 | 4006-23TAG2A | 4100×1750×2170 | 5300 | |
| 700 | 875 | 770 | 963 | 4006-23TAG3A | 4100×1750×2170 | 5500 | |
| 800 | 1000 | 880 | 1100 | 4008TAG1A | 4700×2100×2250 | 7700 | |
| 800 | 1000 | 880 | 1100 | 4008TAG2 | 4700×2100×2250 | 7900 | |
| 1000 | 1250 | 1100 | 1375 | 4008-30TAG3 | 4700×2100×2250 | 10000 | |
| 1000 | 1250 | 1100 | 1375 | 4012-46TWG2A | 4900×1800×2500 | 10000 | |
| 1100 | 1375 | 1210 | 1513 | 4012-46TWG3A | 5000×2100×2550 | 10100 | |
| 1200 | 1500 | 1320 | 1650 | 4012-46TAG2A | 5000×2200×2550 | 10200 | |
| 1350 | 1688 | 1485 | 1856 | 4012-46TAG3A | 5000×2200×2550 | 10200 | |
| 1480 | 1850 | 1628 | 2035 | 4016TAG1A | 6850×2250×2850 | 13000 | |
| 1600 | 2000 | 1760 | 2200 | 4016TAG2A | 6850×2250×2850 | 13500 | |
| 1800 | 2250 | 1980 | 2475 | 4016-61TRG3 | 6850×2250×285 | 15000 | |
60Hz Selection Table
| Genset Model | Generating Set Output | Perkins Engine Model | Size | ||||
| Prime Power | Standby Power | Dimension( L x W x H:mm ) | Weight( kg ) | ||||
| KW | KVA | KW | KVA | ||||
| 20 | 25 | 22 | 28 | 404D-22G | 1450x730x1000 | 600 | |
| 28 | 35 | 31 | 38 | 1103A-33G | 1500×730×1150 | 800 | |
| 43 | 53 | 47 | 59 | 1103A-33TG1 | 1600x730x1200 | 900 | |
| 55 | 68 | 60 | 75 | 1103A-33TG2 | 1750×750×1250 | 1030 | |
| 61 | 76 | 67 | 84 | 1104A-44TG1 | 1950×750×1250 | 1050 | |
| 64 | 80 | 70.4 | 88 | 1104A-44TG2 | 1950×750×1250 | 1100 | |
| 72 | 90 | 80 | 100 | 1104C-44TAG1 | 1950×750×1250 | 1100 | |
| 92 | 114 | 101 | 121 | 1104C-44TAG2 | 1950×750×1250 | 1250 | |
| 122 | 152 | 135 | 169 | 1106A-70TG1 | 2400×850×1400 | 1700 | |
| 135 | 169 | 150 | 188 | 1106A-70TAG2 | 2400×850×1400 | 1780 | |
| 158 | 197 | 175 | 219 | 1106A-70TAG3 | 2400×850×1400 | 2200 | |
| 180 | 225 | 200 | 250 | 1206A-E70TTAG1 | 2400×850×1400 | 2200 | |
| 180 | 225 | 165 | 206 | 1506A-E88TAG2 | 2600×1050×1600 | 2380 | |
| 286 | 357 | 316 | 395 | 1706A-E93TAG1 | 2600×1050×1600 | 2380 | |
| 320 | 400 | 352 | 440 | 2206C-E13TA2/3 | 3250X1200X2000 | 3500 | |
| 350 | 438 | 400 | 500 | 2206A-E13TAG6 | 3250X1200X2000 | 3500 | |
| 400 | 500 | 440 | 550 | 2506C-E15TAG1/2 | 3500×1200×2050 | 3700 | |
| 468 | 585 | 517 | 646 | 2506C-E15TAG3 | 3500×1200×2050 | 3700 | |
| - | - | 550 | 687 | 2806C-E18TAG1A | 3500×1300×2100 | 4000 | |
| 500 | 625 | 550 | 687 | 2806A-E18TAG2 | 3500×1300×2100 | 4600 | |
| 545 | 681 | 600 | 750 | 2806A-E18TAG3 | 3500×1300×2100 | 4600 | |
| - | - | 600 | 750 | 2806C-E18TAG3 | 3500×1300×2100 | 4600 | |
| 642 | 802 | 710 | 888 | 2806A-E18TTAG4/5 | 4100×1750×2170 | 5300 | |
| 650 | 813 | 716 | 895 | 2806A-E18TTAG6 | 4100×1750×2170 | 5300 | |
| 680 | 850 | 750 | 938 | 2806A-E18TTAG7 | 4100×1750×2170 | 5300 | |
| 600 | 750 | 660 | 825 | 4006-23TAG2A | 4100×1750×2170 | 5300 | |
| 680 | 850 | 750 | 938 | 4006-23TAG3A | 4100×1750×2170 | 5500 | |
| 707 | 884 | 780 | 975 | 4008TAG1A | 4700×2100×2250 | 7700 | |
| 800 | 1000 | 880 | 1100 | 4008TAG2 | 4700×2100×2250 | 7900 | |
| 1000 | 1250 | 1100 | 1375 | 4012-46TWG2A | 4900×1800×2500 | 10000 | |
| 1100 | 1375 | 1200 | 1500 | 4012-46TWG3A | 5000×2100×2550 | 10100 | |
| 1200 | 1500 | 1330 | 1663 | 4012-46TAG2A | 5000×2200×2550 | 10200 | |
| 1350 | 1688 | 1500 | 1875 | 4012-46TAG3A | 5000×2200×2550 | 10200 | |
| 1480 | 1850 | 1628 | 2035 | 4016TAG1A | 6850×2250×2850 | 13000 | |
| 1600 | 2000 | 1760 | 2200 | 4016TAG2A | 6850×2250×2850 | 13500 | |
| 1800 | 2250 | 1980 | 2475 | 4016-61TRG3 | 6850×2250×285 | 15000 | |
For more details, please contact us!
Details
- Fuel System Digital governing to ISO 8528-5 Class G2 with isochronous capability. Direct fuel injection system with fuel lift pump. Full flow spin-on filters.
- Air Intake System An air filter and turbocharger ensure sufficient air intake and optimal performance.
- Lubrication System Wet full aluminium sump with filler and dipstick，Full flow spin-on oil filters.
- Maintenance-Free Lead-Acid Battery The maintenance-free lead-acid battery is easy to use and requires only regular inspections and cleaning to remove surface dirt and manage terminal oxidation. It features earthquake and high temperature resistance, all within a compact design.
- Intelligent Protection and Control System Our generator sets are equipped with the renowned SmartGen/Deep Sea control system, providing comprehensive protection against short-circuit, under-voltage, phase sequence, and overload. Our generator sets feature a multifunctional LCD display that enables full manual control, parallel operation, and auto/stop/manual options. They also include start and stop delays for enhanced operational flexibility. An emergency stop button is provided for increased safety.
- Chassis High-strength, bending-resistant chassis made from thick steel plate for excellent shock absorption, corrosion-resistant spray paint.
- Shock Absorbers The body and base are equipped with high-strength chrome-plated shock absorbers, providing effective shock absorption, noise reduction, strong load-bearing capabilities, and durability.
- Brushless Alternator Brushless alternator ensures a quick start and constant power output within a short time.
Features
- Compact design with an efficient weight-to-power ratio.
- Full suspension damping system for effective vibration reduction.
- Environmentally friendly with ultra-low emissions and noise.
- Stable performance with low vibration and consumption rates, extended operational lifespan, and infrequent maintenance needs.
Cases
- 90kW silent Perkins engine series diesel generator sets exported to the United Sates
- 60kW silent Perkins engine series diesel generator sets exported to Africa
