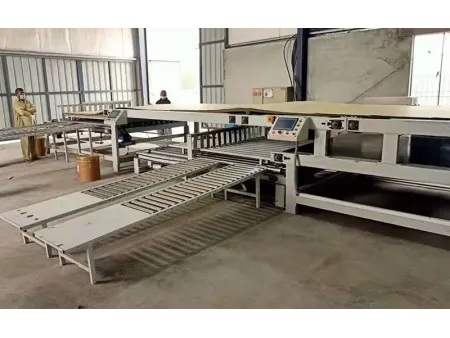

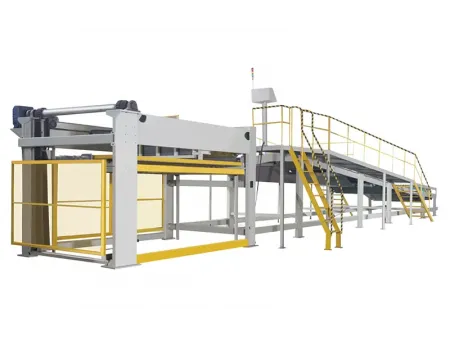

Sheet Cutter Stacker Machine (Corrugated Downstacker)
Request a Quote
Individual Machines for Corrugated Board Manufacturing
Automatic corrugated sheet cutting and stacking machine for high-efficiency corrugated board production
The sheet cutter stacker machine is responsible for automatically cutting continuously produced corrugated boards into individual sheets and stacking them into piles, making subsequent handling, storage, or processing more convenient.
Features
- Uses a five-section belt conveying system with variable-frequency closed-loop control for smooth conveying and precise sheet separation, suitable for high-speed continuous stacking.
- The pressing unit adopts a sun-gear mechanism and carbon-fiber components, protecting the board surface and reducing maintenance frequency.
- Equipped with automatic parameter adjustment; stacking thickness and quantity intelligently adapt to production requirements.
- Nylon-track delivery design is soft and wear-resistant, preventing surface scratches on the board.
- Servo-controlled lifting mechanism ensures smooth power switching, improved energy efficiency, and consistent operation.
Technical Specifications
| Model | DM-DL |
| Max. receiving width, mm | 2500 |
| Receiving length, mm | Standard configuration: 500-3500 (customized) |
| Logistics roller table | Configurable according to order |
| Transverse conveying mode | Modular belt |
| Stacking height, mm | 2500 |
| Max. line speed, m/min | 250 |
| Machine dimensions (LxWxH), mm | 20000x3200x2800 |
| Total weight, T | 12 |
