Corrugated Sheet Stacker Machine

Request a Quote

Website: http://corrugatedline-en.com/1-12-corrugated-sheet-stacker-machine.html

Individual Machines for Corrugated Cardboard Production

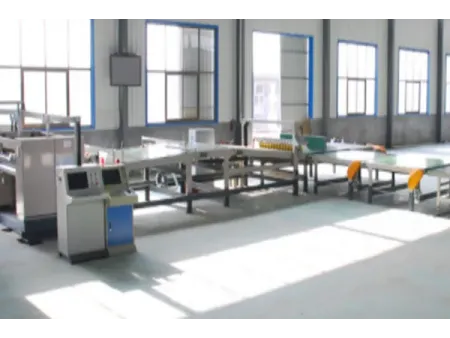

Right-Angle Corrugated Sheet Stacker, LSM

Built with a strong steel frame and advanced control functions, the right-angle corrugated sheet stacker delivers reliable performance for precise and efficient sheet stacking. It is designed to handle boards smoothly, adjust dimensions with ease, and discharge stacks accurately to meet production requirements.

Features

Durable Construction
Welded with No.14 channel steel for strength, rigidity, and long service life.
Adjustable Dimensions
Electric adjustment of board size allows accurate setup for different stacking requirements.
Pneumatic Output Control
Pneumatic system enables precise and reliable lateral sheet discharge.
Variable Speed Control
Electrically adjustable conveyor speed adapts to different production conditions.
Easy Discharge
Foot pedal switch allows sheets to be moved out once the required number or stack height is reached.
Stable Sheet Conveying
Wide longitudinal conveyor belts ensure smooth and steady board transport.

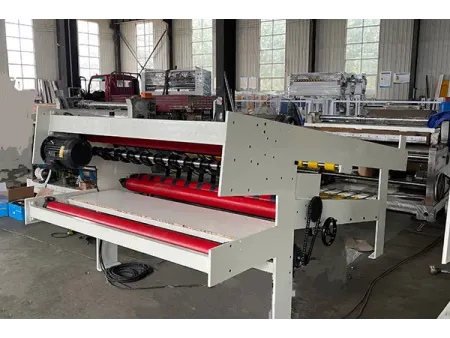

Gantry Corrugated Sheet Stacker, UDM

The gantry corrugated sheet stacker is designed for fast, precise, and efficient stacking operations in corrugated board production. With a changeover time of just 5 seconds, it ensures smooth order transitions and stable stacking performance, making it suitable for both large-scale and small-batch orders.

Features

High-Efficiency Gantry Design
Gantry-type stacking enables order changeover in just 5 seconds, with automatic counting, sheet discharge, and order switching.
Smooth Automatic Discharge
Frequency-controlled lateral discharge activates automatically once the preset sheet quantity is reached, ensuring stability.
Precise Backstop Control
AC servo system provides accurate positioning, allowing quick and precise order changes.
Adaptable for Small Orders
Automatic backstop shifting function supports efficient stacking for small batch production.
Stable Platform
Flat-belt stacking platform with AC servo-controlled lifting ensures smooth, even, and neatly aligned stacks.
Integrated Conveying System
Equipped with motorized side conveyor and dual-position trolleys for efficient sheet transfer.
User-Friendly Operation
Color touchscreen interface simplifies on-site control and monitoring.
Full Automation
Increases efficiency, reduces manpower needs, and lowers operator workload.
