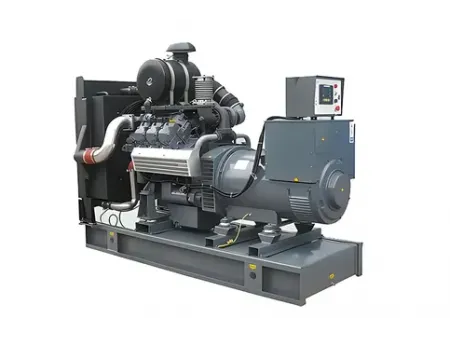

140 Diesel Generating Set (400~900KW)
Request a Quote
Parameters
| Set model | 400GF30 | 450GF30 | 800GF30 | 900GF30 |
| Engine model | JC15D | JC15D-3 | JC30D | JC30D-3 |
| Generator model | XN5C series | |||
| Control panel model | Backpack type | |||
| Rated power(kW) | 400 | 450 | 800 | 900 |
| Rated voltage(V) | 400 | 480 | 400 | 480 |
| Rated frequency(Hz) | 50 | 60 | 50 | 60 |
| Rated power factor | 1500 | 1800 | 1500 | 1800 |
| Connection mode | Three-phase four-wire | |||
| Protection level | IP23 | |||
| Insulation class | H | |||
| Steady-state voltage adjusting rate | ≤±2.5% | |||
| Transient-state voltage adjusting rate | ≤ 20%（-15） | |||
| Voltage stable time | ≤1.5 s | |||
| Voltage fluctuation rate | ≤1.0% | |||
| Steady-state frequency adjusting rate | 0～5% | |||
| Transient-state frequency adjusting rate | ≤±10% | |||
| Frequency stable time | ≤7 s | |||
| Frequency fluctuation rate | ≤0.5% | |||
| Overall dimensions (mm) | 3420×1270×1654 | 4500×1941×2031 | ||
| Net weight (kg) | 3300 | 6500 | ||
