2000 Diesel Generating Set Manufacturer

2000 Diesel Generating Set

Request a Quote

View All: http://jinanengine.com/1-2-2000-Generating.html

HIGH QUALITY AND EFFICIENCY WIDE POWER RANGE

Description of 2000 Diesel Generating Set

State-of-the-art design, convenient maintenance
No leakage of oil, water and gas
Power: 300~800KW
Net weight: 3000~8000Kg
No-load voltage regulation: 95~105% of rated voltage
Diesel generator can be customized upon request

Click Here to

Applications

The diesel engine it used can meet the power requirements of drilling rigs, engineering machinery etc. In addition, two or more diesel generating sets can be used to form a power station.

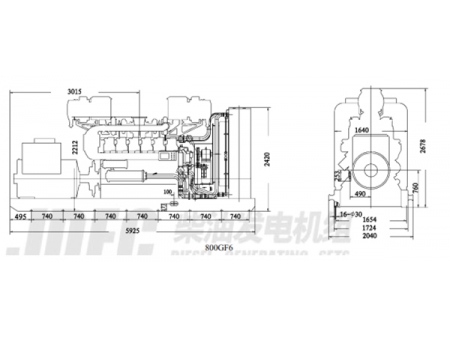

The project drawing of exterior view and interface size

Specification of 2000 Diesel Generating Set

Set model	Diesel engine model	Generator model	Rated power (KW)	Rated voltage (V)	Rated frequency (HZ)	Overall dimensions LBH (mm)	Net weight (Kg)
300GF4	G8V190PZL-2	1FC5404-6TA42	300	400/230	50	5270×2040×2778	3000
500GF17-2	G12V190ZLD1-2	1FC6456-6LA4	500	400/230	50	5925×2040×2678	5000
700GF1-3	G12V190ZLD1	1FC6456-4LA4	700	400/230	50	5925×2040×2678	7000
700GF1-K3	G12V190ZLD1	LV1634D2	700	400/230	50	4515×2040×2678	7000
800GF4-7	G12V190ZLD2	1FC6502-4LA42	800	400/230	50	5925×2040×2678	8000
800GF4-K1	G12V190ZLD4	1FC6502-4LA42	800	400/230	50	4515×2040×2678	8000
800GF4-K4	G12V190ZLD4	LV1634E2	800	400/230	50	4515×2040×2678	8000
800GF6	G12V190ZLD5	JFG5001-4/6300	800	6300	50	5925×2040×2678	8000
800GF7	G12V190ZLD5	1FC6502-4LA42	800	400/230	50	5925×2040×2678	8000
800GFZ-1	G12V190ZLD3	1FC6502-4LA42	800	400/230	50	5925×2040×2678	8000

Main Electrical Performance Data

Voltage				Frequency
Steady-state adjusting rate	Transient-state adjusting rate	Stable time	Fluctuation rate	Steady-state adjusting rate	Transient-state adjusting rate	Stable time	Fluctuation rate
±2.5%	﹣15%~ 20%	1.5S	0.5%	5%	±10%	7S	0.5%
Voltage regulation range: no-load voltage regulation: 95~105% of rated voltage

Control Panel

The control panel of the diesel generating set is mainly used to control the power transmission of generator sets, providing protections for lack-voltage, over-current, automatic speed regulation and reverse power. Meanwhile, it also can monitor such parameters as revs, water temperature, oil temperature, oil pressure and exhaust temperature, with a sound-light alarming output system.
