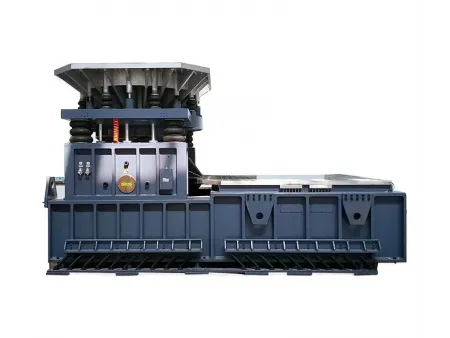

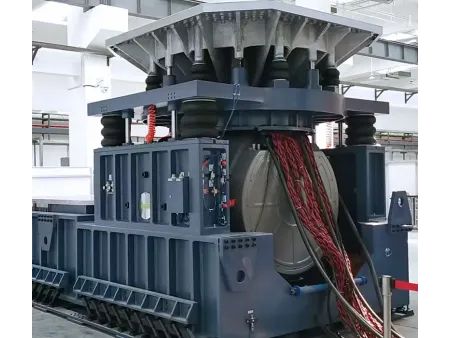

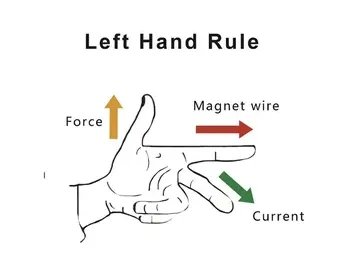

Electrodynamic vibration shaker for vibration testing of medium to large-sized specimens

These water-cooled vibration systems deliver high force output ranging from 80 kN to 400 kN, ideal for testing larger or heavier products. They combine strong thrust with efficient cooling to handle demanding conditions and maintain stable operation. With robust load capacity and precise guidance, they are especially used in aerospace, defense, marine, and rail industries to verify the durability and reliability of critical equipment. Our water-cooled vibration systems are built to meet both Chinese and international testing standards and can be customized to match specific requirements.

Standard Compliance

The water-cooled vibration test systems we offer are manufactured in compliance with JJG948/2018, JJG1000-2005, GB/T 13310-2007.
Performance specifications align with ISO 5344, IEC 60068-2-6, MIL-STD-810 requirements.
Configurations and features can be customized to match specific test needs.

Technical Parameters

System Model	TS25WLS3-340	TS35WLS3-340	TS50W-445	TS50WLS3-445	TS50WLS4-445	TS60W-445	TS60WLS3-445	TS60WLS4-445	TS70W-445	TS70WLS3-445	TS70WLS4-445	TS80W-445	TS80WLS3-445	TS80WLS4-445
Sine/Random (kN)	25	35	50	50	50	60	60	60	70	70	70	80	80	80
Shock force (kN)	50/75	70/105	100/150	100/150	100/150	120/180	120/180	120/180	140/210	140/210	140/210	160/240	160/240	160/240
Frequency range (Hz)	5-2,800	5-2,800	5-2,600	5-2,500	5-2,400	5-2,600	5-2,500	5-2,400	5-2,600	5-2,500	5-2,400	5-2,500	5-2,500	5-2,400
Max. acceleration (m/s²)	1,000	1,000	1,000	1,000	900	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000
Max. velocity (m/s)	2	2	2	2	2	2	2	2	2	2	2	2	2	2
Max. displacement (mm)	76	76	51	76	100	51	76	100	51	76	100	51	76	100
Max. load (kg)	300	300	800	800	800	800	800	800	800	800	800	800	800	800
Armature mass (kg)	25	25	50	50	55	55	60	60	55	60	60	60	60	60
Armature diameter (mm)	340	340	445	445	445	445	445	445	445	445	445	445	445	445
Body suspension natural frequency (Hz)	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Armature inserts (standard)	21×M10	21×M10	17×M12	17×M12	17×M12	17×M12	17×M12	17×M12	17×M12	17×M12	17×M12	17×M12	17×M12	17×M12
Stray flux density	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)
Fundamental resonance frequency (Hz)	2,700 (nom.) ±5%	2,700 (nom.) ±5%	2,400 (nom.) ±5%	2,200 (nom.) ±5%	2,100(nom.) ±5%	2,350 (nom.) ±5%	2,200 (nom.) ±5%	2,100(nom.) ±5%	2,350 (nom.) ±5%	2,200 (nom.) ±5%	2,100(nom.) ±5%	2,200 (nom.) ±5%	2,200 (nom.) ±5%	2,100 (nom.) ±5%
Weight (kg)	1750	1750	4550	4550	4550	4550	4550	4550	4550	4550	4550	4550	4550	4550
Dimensions (mm)	1136×710×1071	1136×710×1071	1636×1104×1300	1636×1104×1300	1636×1104×1336	1636×1104×1300	1636×1104×1300	1636×1104×1336	1636×1104×1300	1636×1104×1300	1636×1104×1336	1636×1104×1300	1636×1104×1300	1636×1104×1336
Power Amplifier Model	PWA30W	PWA40W	PWA50W	PWA50W	PWA50W	PWA60W	PWA60W	PWA60W	PWA70W	PWA70W	PWA80W	PWA80W	PWA80W	PWA80W
Power (kVA)	36	48	50	50	50	60	60	60	70	70	80	80	80	80
Max. output voltage (V)	120	120	120	120	120	120	120	120	120	120	120	120	120	120
Max. output current (A)	400	500	550	550	550	550	550	550	600	600	900	900	900	900
Power requirement (kVA)	86	91	91	91	91	101	101	102	111	111	142	142	142	142
Weight (kg)	700	1000	1100	1100	1100	1150	1150	1150	1200	1200	1800	1900	1900	1900
Dimensions (mm)	600×1000×2150	1200×1000×2150	1200×1000×2150	1200×1000×2150	1200×1000×2150	1200×1000×2150	1200×1000×2150	1200×1000×2150	1200×1000×2150	1200×1000×2150	1800×1000×2150	1800×1000×2150	1800×1000×2150	1800×1000×2150
Cooling Unit Model	CW-40-1	CW-40-1	CW-40-1	CW-40-1	CW-80-1	CW-40-1	CW-40-1	CW-80-1	CW-40-1	CW-40-1	CW-80-1	CW-80-1	CW-80-1	CW-80-1
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling
Internal circle water flow (L/min)	40	40	40	40	80	40	40	80	40	40	80	80	80	80
Internal water pressure (Mpa)	1	1	1	1	1	1	1	1	1	1	1	1	1	1
External circle water flow (L/min)	100	100	100	100	160	100	100	160	100	100	160	160	160	160
External water pressure (Mpa)	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4
Water pump power (kW)	5/2.5	5/2.5	5/2.5	5/2.5	10/4	5/2.5	5/2.5	10/4	5/2.5	5/2.5	10/4	10/4	10/4	10/4
Weight (kg)	250	250	250	250	320	250	250	320	250	250	320	320	320	320
Dimensions (L×W×H) (mm)	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990

System Model	TS100-550	TS100LS3-550	TS120-550	TS120LS3-550	TS160-650	TS160LS3-650	TS180-650	TS180LS3-650	TS200-650	TS200LS3-650	TS300LS3-870	TS350LS3-870	TS400LS3-870
Sine/Random (kN)	100	100	120	120	160	160	180	180	200	200	300/240	350/250	400/300
Shock force (kN)	200/300	200/300	240/360	240/360	320/480	320/480	360/480	360/480	400/600	400/600	600/900	700/900	800/1000
Frequency range (Hz)	5-2,500	5-2,500	5-2,500	5-2,500	5-2,100	5-2,100	5-2,100	5-2,100	5-2,100	5-2,100	5-1,700	5-1,700	5-1,700
Max. acceleration (m/s²)	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000	1,000
Max. velocity (m/s)	2	2	2	2	2	2	2	2	2	2	2	2	2
Max. displacement (mm)	51	76	51	76	51	76	51	76	51	76	76	76	76
Max. load (kg)	1000	1000	1000	1000	2,500	2,500	2,500	2,500	2,500	2,500	5,000	5,000	5,000
Armature mass (kg)	90	90	90	90	150	150	150	150	150	150	300	310	330
Armature diameter (mm)	550	550	550	550	650	650	650	650	650	650	870	870	870
Body suspension natural frequency (Hz)	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Armature inserts (standard)	37×M12	37×M12	37×M12	37×M12	25×M12	25×M12	25×M12	25×M12	25×M12	25×M12	33×M12	33×M12	33×M12
Stray flux density	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)	﹤ 1 mT (10 Gs)
Fundamental resonance frequency (Hz)	2,150 (nom.) ±5%	2,150 (nom.) ±5%	2,150 (nom.) ±5%	2,150 (nom.) ±5%	1,800 (nom.) ±5%	1,800 (nom.) ±5%	1,700 (nom.) ±5%	1,700 (nom.) ±5%	1,700 (nom.) ±5%	1,700 (nom.) ±5%	1,600 (nom.) ±5%	1,600 (nom.) ±5%	1,600 (nom.) ±5%
Weight (kg)	7380	7380	7380	7380	11100	11100	11100	11100	11100	11100	22950	22950	22950
Dimensions (mm)	1780×1280×1380	1780×1280×1380	1780×1280×1380	1780×1280×1380	2100×1430×1553	2100×1430×1553	2100×1430×1553	2100×1430×1553	2100×1430×1553	2100×1430×1553	2800×2300×1943	2800×2300×1943	2800×2300×1943
Power Amplifier Model	PWA100W	PWA100W	PWA120W	PWA120W	PWA160W	PWA160W	PWA180W	PWA180W	PWA200W	PWA200W	PWA300W	PWA350W	PWA400W
Power (kVA)	100	100	120	120	160	160	180	180	200	200	380	420	460
Max. output voltage (V)	120	120	120	120	120	120	120	120	120	120	120	120	120
Max. output current (A)	1100	1100	1200	1200	1800	1800	2000	2000	2200	2200	3000	3600	4000
Power requirement (kVA)	162	162	182	182	232	232	252	252	282	282	427	507	537
Weight (kg)	2000	2000	2000	2000	2700	2700	2700	2700	3400	3400	4200	6300	6300
Dimensions (mm)	1800×1000×2150	1800×1000×2150	1800×1000×2150	1800×1000×2150	2400×1000×2150	2400×1000×2150	2400×1000×2150	2400×1000×2150	3000×1000×2150	3000×1000×2150	6000×1000×2150	6000×1000×2150	6000×1000×2150
Cooling Unit Model	CW-80-1	CW-80-1	CW-80-1	CW-80-1	CW-80-1	CW-80-1	CW-80-1	CW-80-1	CW-80-1	CW-80-1	CW-120-1	CW-120-1	CW-120-1
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling
Internal circle water flow (L/min)	80	80	80	80	80	80	80	80	80	80	120	120	120
Internal water pressure (Mpa)	1	1	1	1	1	1	1	1	1	1	1	1	1
External circle water flow (L/min)	160	160	160	160	160	160	160	160	160	160	320	320	320
External water pressure (Mpa)	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4	0.25~0.4
Water pump power (kW)	10/4	10/4	10/4	10/4	10/4	10/4	10/4	10/4	10/4	10/4	15/6.5	15/6.5	15/6.5
Weight (kg)	320	320	320	320	320	320	320	320	320	320	350	350	350
Dimensions (L×W×H) (mm)	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990	600×1000×1990

Distilled water (hardness ≤30 ppm, pH 7–8, conductivity 1 μS/cm) is required for the internal circulation. City/tap water is used for the external cooling circuit.
