6000 Diesel Generating Set Manufacturer

6000 Diesel Generating Set

Request a Quote

View All: http://jinanengine.com/1-2-6000-Generating.html

HIGH QUALITY AND EFFICIENCY WIDE POWER RANGE

Description

Newly-designed by adopting modern technology from AVL of Austria
Power: 1350~2000 KW
Rated voltage: 400/230 V
No-load voltage regulation: 95~105% of rated voltage
Different kind of generators is available to meet customers' specific requirements

Applications

With the powerful 6000-diesel engine, this genset is widely used in power plants.

Click Here to

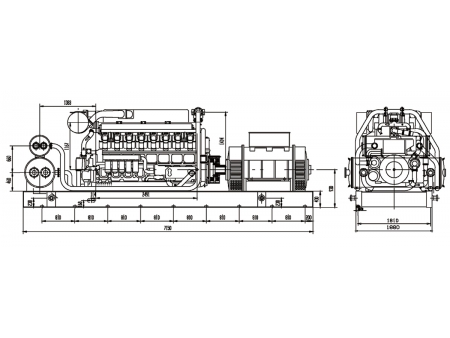

The project drawing of exterior view and interface size

Specification of 6000 Diesel Generating Set

Set model	Diesel engine model	Generator model	Rated power (KW)	Rated voltage (V)	Rated frequency (HZ)	Overall dimensions LBH (mm)	Net weight (Kg)
1350GF	H12V190ZL	DIGI1308/4	1350	400/230	50	7880×2869×3175	19100
1350GF-K	H12V190ZLD	1FC6566-4TA42	1350	400/230	50	5930×2180×2421	17000
1350GFZ	H12V190PZLD	1FC6566-4TA42	1350	400/230	50	7880×2869×3175	19500
1500GF	H12V190ZL	1FC6566-4TA42	1500	400/230	50	7880×2869×3175	19500
1500GF-K	H12V190ZL	HCI734H2	1500	400/230	50	5930×2180×2421	17000
1500GFZ	H12V190ZLD	1FC6566-4TA42-Z	1500	400/230	50	7880×2869×3175	19500
2000GF	H16V190ZLD	1FC5636-4BA42	2000	400/230	50	9060×2869×3175	24000
2000GF-K	H16V190ZLD	1FC5636-4BA42	2000	400/230	50	7150×2180×2421	21000
2000GFZ	H16V190ZLD	1FC5636-4BA42	2000	400/230	50	9060×2869×3175	24000

Main Electrical Performance Data

Voltage				Frequency
Steady-state adjusting rate	Transient-state adjusting rate	Stable time	Fluctuation rate	Steady-state adjusting rate	Transient-state adjusting rate	Stable time	Fluctuation rate
±2.5%	﹣15%~ 20%	1.5S	0.5%	5%	±10%	7S	0.5%
Voltage regulation range: no-load voltage regulation: 95~105% of rated voltage

Control Panel

The control panel of the diesel generating set is mainly used to control the power transmission of generator sets, providing protections for lack-voltage, over-current, automatic speed regulation and reverse power. Meanwhile, it also can monitor such parameters as revs, water temperature, oil temperature, oil pressure and exhaust temperature, with a sound-light alarming output system.
