6T Truck Cranes, STSQ6D

Request a Quote

View All: http://heavy-crane.com/1-2-2-6t-truck-mounted-crane-stsq6d.html

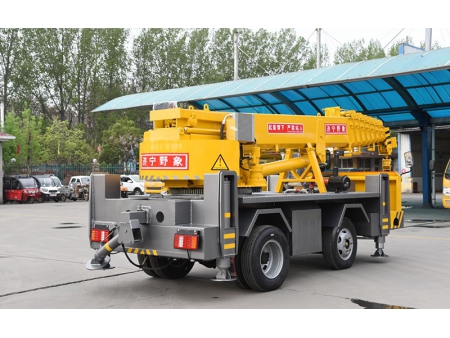

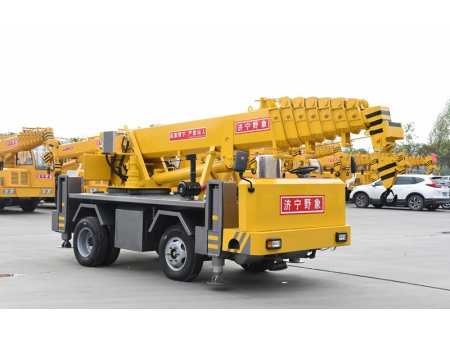

STSQ6D is a truck mounted crane with loading capacity of up to 6 tons, which is versatile for tight spaces with difficult access. This truck mounted crane is designed with a 9-section telescopic boom that can be extended to a working height of 25m, and the configurations of Changchai 490 engine, 11kW motor and 700-16 truck tyres provide the crane truck maintenance with great ease.

Features

Equipped with our self-made chassis, stable and reliable;
Compact structure makes the crane suitable for confined spaces, typically inside workshop;
0.5 meter extendable counterweight greatly enhances the lifting stability of the crane;
Extension length of frame is up to 1.2m;

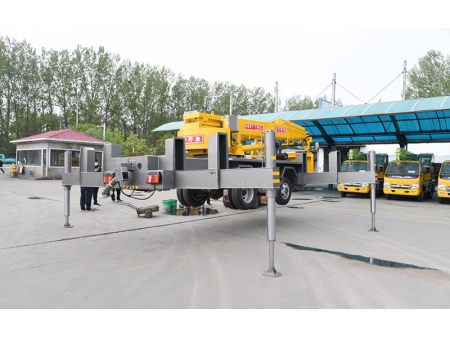

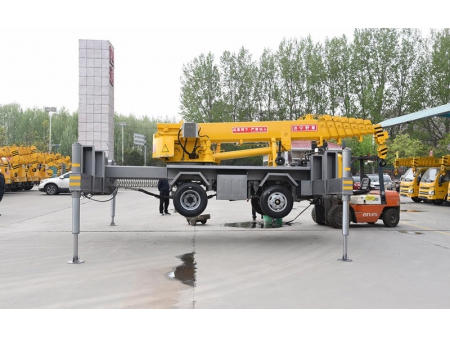

Retractable outrigger system of double-section stabilizing leg;

Specifications

Max. loading capacity: 6t

Max. lifting height: 25m

Longitudinal outrigger span: 5.08m

Transversal outrigger span: 5.87m

Boom: 9 sections (3.5m per section)

Dimensions: 5.68m*2m*2.74m

Motor power: 11kW

Slewing speed: 0-2.8r/min

Engine power: 37kW

Tyres: 700R16

Wheelbase: 2.04m

Crane weight: 8.2t
