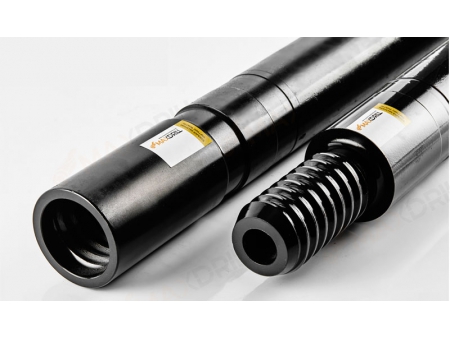

The use of guide tubes in underground deep hole drilling result in straighter holes, which increases the drilling efficiency and reduces operating costs.

  • Thread: R32, T38, T45, T51, ST58, GT60, MT60, ST68
  • Diameter(mm): 46, 56, 65, 76, 87
  • Length(mm): 1220, 1525, 1830, 2280, 3050, 3660
Highlights
  • Thread ends of the rods are made of quality materials and processed with heat treatment, which can reduce dents in thread ends and extend service life;
  • Risk of thread end breakage is reduced;
  • Less thread wear on the outer and inner sides of rod ends increases use efficiency and service life;
  • Tight tolerance of rods ensures safety, durability and high quality.

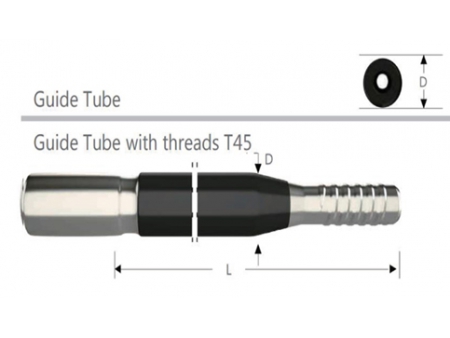

Specification of Guide Tubes

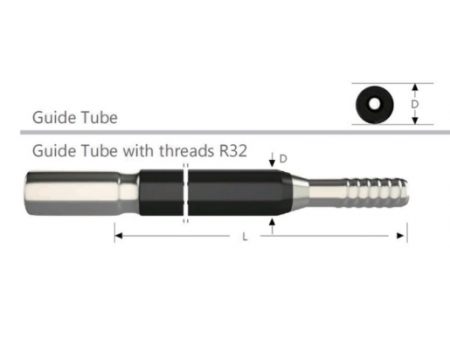

Dimensions L Dimensions D Part NO.
mm ft in mm in
1120 4 - 45 1 3/4 2245R32MF12
1830 6 - 45 1 3/4 2245R32MF18
3050 10 - 45 1 3/4 2245R32MF30

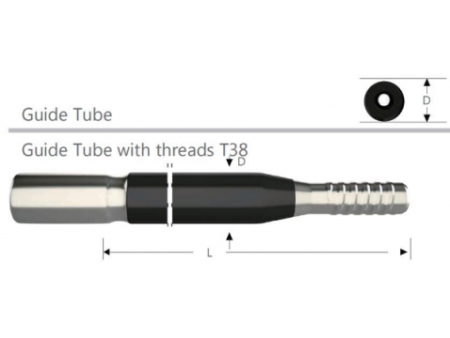

Dimensions L Dimensions D Part NO.
mm ft in mm in
1220 4 - 56 2 1/8 2256T38MF12
1525 5 - 56 2 1/8 2256T38MF15
1830 6 - 56 2 1/8 2256T38MF18
3050 10 - 56 2 1/8 2256T38MF30
3660 12 - 56 2 1/8 2256T38MF36
Dimensions L Dimensions D Part NO.
mm ft in mm in
1525 5 - 64 2 1/2 2264T45MF15
1830 6 - 64 2 1/2 2264T45MF18
3660 12 - 64 2 1/2 2264T45MF36
1830 6 - 76 3 2276T45MF18
3660 12 - 76 3 2276T45MF36

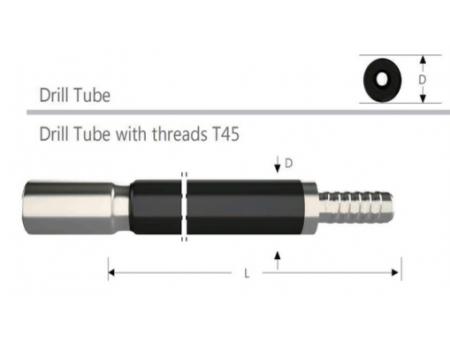

Dimensions L Dimensions D Part NO.
mm ft in mm in
1525 5 - 64 2 1/2 2464T45MF15
1830 6 - 64 2 1/2 2464T45MF18

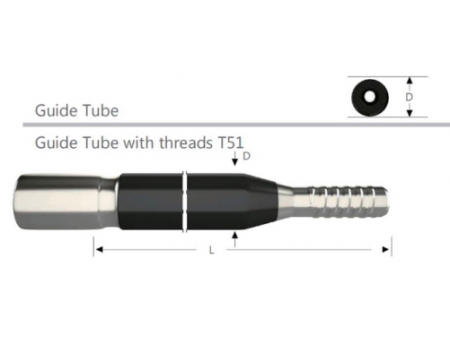

Dimensions L Dimensions D Part NO.
mm ft in mm in
1525 5 - 76 3 2276T51MF15
1830 6 - 76 3 2276T51MF18
3660 12 76 3 2276T51MF36
3660 12 87 3 1/2 2287T51MF36

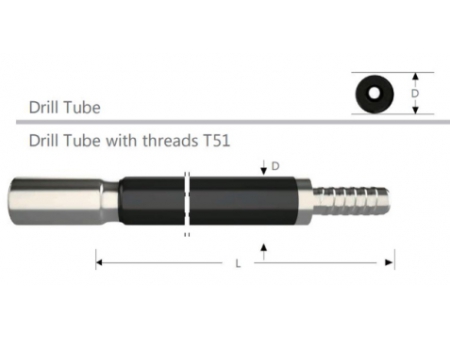

Dimensions L Dimensions D Part NO.
mm ft in mm in
1525 5 - 76 3 2476T51MF15
1830 6 - 76 3 2476T51MF18

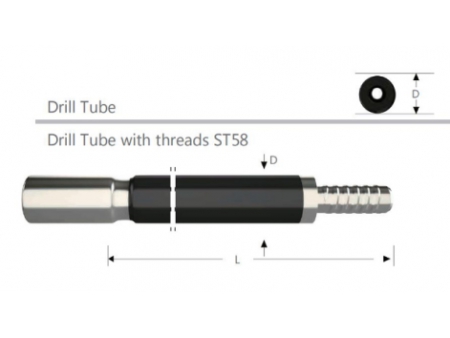

Dimensions L Dimensions D Part NO.
mm ft in mm in
1525 5 - 76 3 2476ST58MF15
1830 6 - 76 3 2476ST58MF18

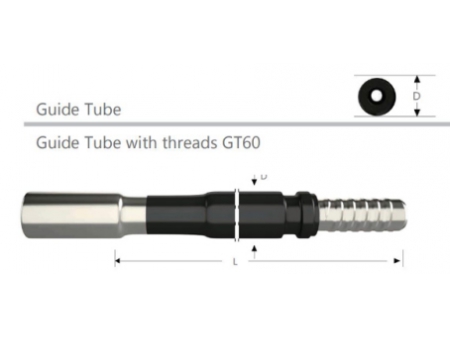

Dimensions L Dimensions D Part NO.
mm ft in mm in
3660 12 - 87 3 1/2 2287T60MF36
4270 14 - 87 3 1/2 2287T60MF42
6095 20 87 3 1/2 2287T60MF60

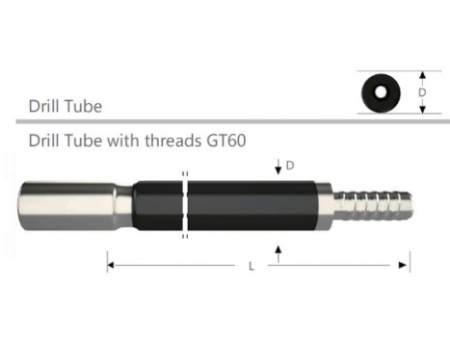

Dimensions L Dimensions D Part NO.
mm ft in mm in
3660 12 - 87 3 1/2 2487T60MF36
4270 14 - 87 3 1/2 2487T60MF42

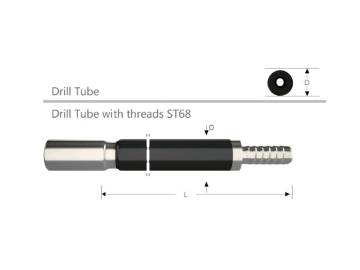

Dimensions L Dimensions D Part NO.
mm ft in mm in
1525 5 - 87 3 1/2 2487ST68MF15
1830 6 - 87 3 1/2 2487ST68MF18
