3CM-5B

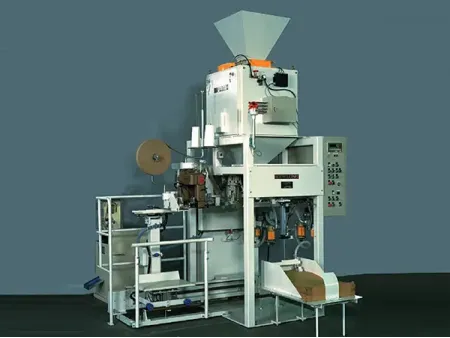

Fully automatic open-mouth bagger for filling granular and powder products into pre-made open-mouth bags

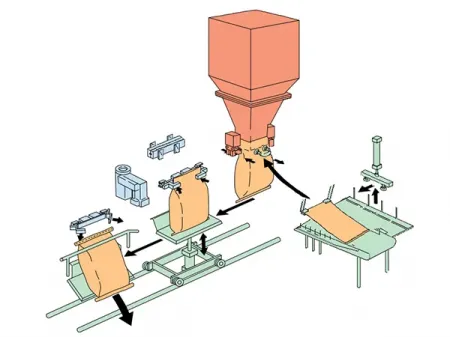

The automatic bagging machine features a compact structure designed for facilities with limited floor space and moderate production needs. It is well-suited for materials such as hot-cut plastic pellets, masterbatch, and modified PP, where stable performance and flexible configuration are key. The open-mouth bagger automates material feeding, weighing, filling, and bag closing, significantly reducing manual intervention and improving operational consistency.
The bagging system can be configured for straight-through or side-discharge bag handling, depending on plant layout. It also meets the requirements of demanding environments, including explosion-proof, anti-corrosion, and acid-alkali conditions. This automatic bag packaging machine is compatible with paper bags, woven bags, and PE film bags, making it a versatile choice for chemical, feed, grain, and general industrial applications.
| Machine dimensions (L×W×H) | 2000×2350×1800mm (including weighing scale height of 2900mm) |
| Applicable bag materials | Laminated woven bags (D-type optional for soft bags) |
| Applicable bag styles | Flat-top bags, M-gusset bags |

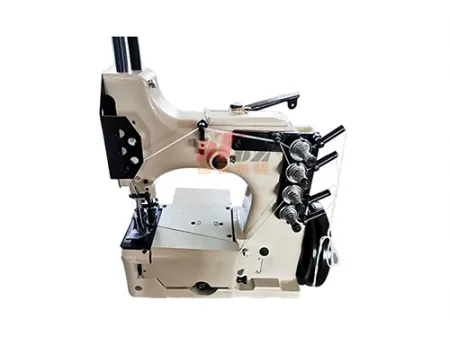

| Optional closing methods | Sewing |
| Applicable bag size | Length 700-900 Width 400-550mm |
| Bag magazine capacity | 100 |
| Filling range | 20-40kg/bag |
| Capacity | 100-200 bags/hr (depending on material flow and bulk density) |
| Power supply | AC 220V/380V ±5%, 50 Hz±1%, three-phase four-wire |
| Peak power | 10kW |
| Air supply | 0.5–0.7MPa, 40Nm³/hr, inlet pipe diameter 1inch |
| Operating temperature | –5°C to 40°C, dew point –40°C |
| Vacuum system | Integrated vacuum generator or vacuum pump |
Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.
