Automatic Palletizing Equipment
Robotic bag palletizer
- Bag weight 10-40kg
- Capacity 800-1000bag/hour
The robotic bag palletizer, equipped with a PLC-controlled system, touchscreen interface, and servo motor drives, features a compact, space-saving frame design ideal for facilities with limited space. It consists of a robotic arm, mechanical grippers, palletizing conveyors, cleaning devices, turning units, a control system, and specialized end-effectors such as vacuum suction cups or mechanical claws.
During operation, the robotic arm accurately positions itself to pick up bags using its end-effector, either generating vacuum suction or applying mechanical gripping force, to securely handle materials. After picking up the bags, the arm transports and places them precisely onto pallets according to customizable stacking patterns such as interlocking or row-column stacking. Throughout this automatic process, sensors continually monitor the robot’s movements and gripping performance to ensure safety, reliability, and precision in palletizing.
- The robotic palletizer uses high-performance robots from renowned brands such as ABB and FANUC, offering exceptional reliability, ease of operation, and minimal downtime.

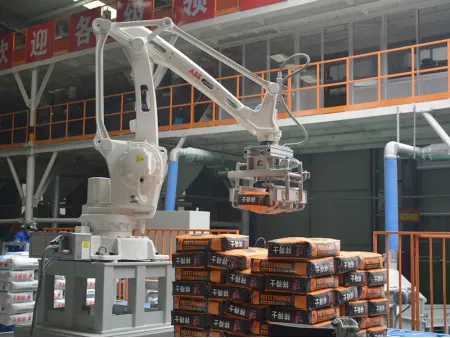

- The mechanical grippers are constructed with lightweight aluminum alloy frames and robust SMC cylinders. Aluminum claws combined with belt-guiding and pressing mechanisms ensure secure and stable gripping of bags.
- The software system is developed in-house and includes an extensive stacking-pattern database, enabling easy adjustments for various pallet configurations, significantly simplifying the palletizing process.

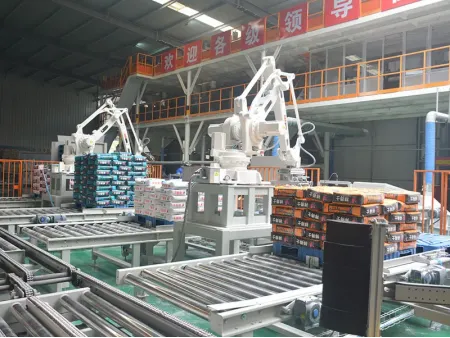

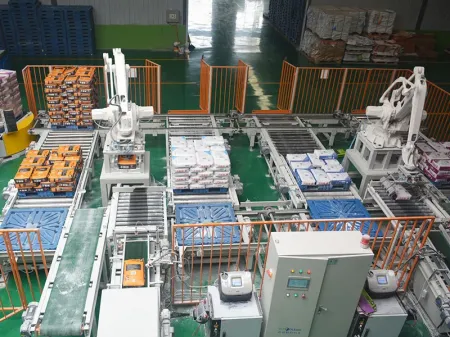

Qingdao Taishang Taihao New Materials Co., Ltd.
Industry: Production of building material additives
