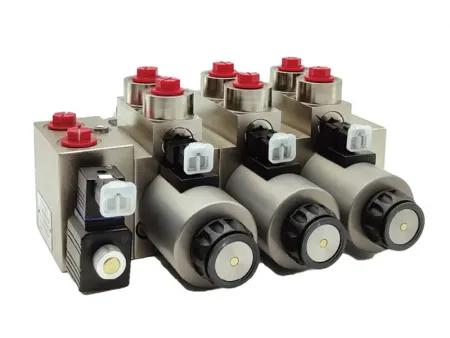

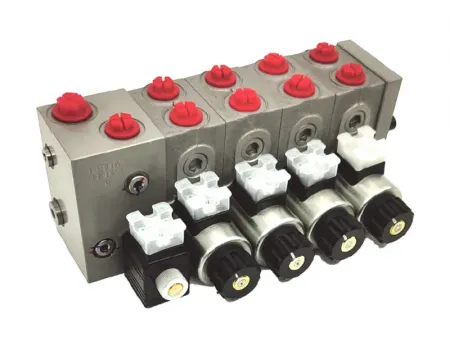

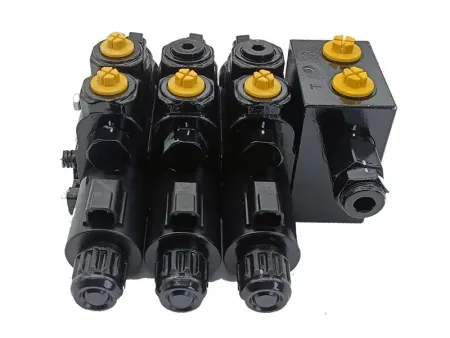

GFV15 Sectional Directional Control Valve
Request a Quote
- Sectional directional control valve is available from 1 to 10 sections.
- Sectional control valve is compact designed, simplifying piping design and installation.
- Integrated inlet section supplies constant fluid flow to steering system.
- Control valve is equipped with a brake valve for operational safety.
- Spool with smoothly polished surfaces enables precise control of fluid flow.
- Control valve can be equipped with overload valve or charge valve.
- Loop type: parallel circuit, series-parallel circuit or dual circuit.
Applications
- 1-3 tons forklifts
- Agricultural tractor auxiliary function
- Material handling machinery
- Small sized loader, excavator
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 65 (maximum flow: 75 L/min) |
| Pressure range of main safety valve (MPa) | 10-25 |
| Flow rate (L/min) | 11-14 |
| Pressure range of steering relief valve (MPa) | 8-20 |
| Actuating force (N) | 140 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-100 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-2002 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 9.5 |
Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components
Annual production capacity of 250,000 sets of hydraulic components
Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
