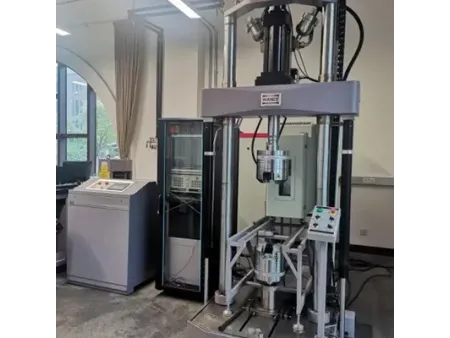

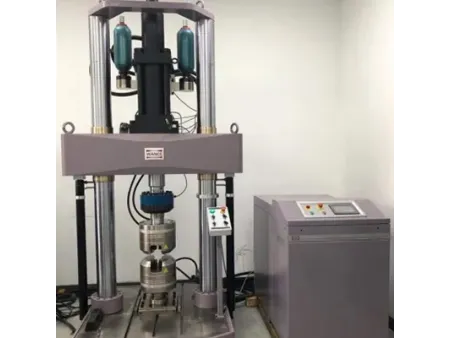

Servo-Hydraulic Fatigue Testing Machine, Floor-Standing

Request a Quote

Website: http://testingmachine-en.com/5-3-dynamic-fatigue-testing-machines.html

HFT-A/B Series (25kN-2000kN)

Functions

Low-cycle and high-cycle fatigue (LCF/HCF), fracture mechanics tests including JIC, KIC, and CTOD

Standards

ASTM E399, ASTM 1820, ISO12135, GB/T21143, ISO 1099, ISO 12106, GBT 3075, GBT 5248, GBT 26077, ASTM E466, ASTM E60

Features

The load frame adopts a fully enclosed, high-stiffness architecture with zero backlash, ensuring excellent stability during high-frequency cyclic loading.
Induction-hardened columns with hard-chrome finish provides superior guiding accuracy, exceptional surface hardness, and long-term corrosion resistance. Hydraulic crosshead lift and hydraulic crosshead locking controlled via rotary knobs for intuitive operation. The self-locking mechanism prevents crosshead drift even when the system is powered off.
Integrated coaxiality adjustment system allows fine alignment of upper and lower hydraulic grips, ensuring highly accurate axial loading and optimal test repeatability.
Imported hydraulic fittings, seals, and hoses guarantees long-term sealing reliability and stable hydraulic performance.
Integrated actuator-lower crosshead design reduces bolted connections, increases system stiffness, and results in a more compact mechanical layout.
Servo actuator with clearance-seal technology eliminates high-pressure seals. The ultra-precise fit between piston and cylinder ensures exceptionally smooth motion, extremely low damping, zero stick-slip and high-frequency response suitable for dynamic fatigue applications.
Mechanical-hydraulic rotary control interface offers intuitive and reliable operation.

Specifications

HFT-A Floor-Standing Fatigue Testing System

Model	HFT254A	HFT504A	HFT105A	HFT255A	HFT505A
Force capacity, kN (rated dynamic force)	25	50	100	250	500
Force measurement range, kN (2%-100%FS)	0.5-25	1-50	2-100	5-250	10-500
Static force accuracy	±0.5%
Dynamic force accuracy	±1.5%
Actuator stroke, mm	150
Displacement range, mm	0-150(±75)
Displacement resolution, mm	0.001
Displacement accuracy	≤3mm, 0.015mm >3mm, ±0.5%FS
Test frequency (Hz, Sine wave)	0.01-60
Standard frame, A, mm	150-1520	150-1520	150-1520	250-1620	380-2050
Extended frame, A, mm	550-1920	550-1920	550-1920	650-2020	/
T-slot table height, B, mm	135	135	135	165	220
Distance between columns C, mm	550	550	550	650	760
Column diameter, D, mm	80	80	80	80	100
Machine width E, mm	970	970	970	1070	1300
T-slot table length, F, mm	800	800	800	900	1100
T-slot table width, G, mm	800	800	800	900	1100
Standard frame height, H, mm	2910	2910	2910	3170	3990
Extended frame height, H, mm	3410	3410	3410	3570	/
Standard frame height, I, mm	2105	2105	2105	2620	3010
Extended frame height, I, mm	2595	2595	2595	2710	/
Load cell height, J, mm	180	180	180	237	307
T-slot distance, K, mm	100	100	100	125	150
T-slot distance, L, mm	200	200	200	250	300
T-slot distance, M, mm	0	0	0	160	240
T-slot bolt	M16	M16	M16	M20	M20
Stiffness, N/m	5x108	5x108	5x108	5.4x108	7.8x108
Standard frame weight, kg	1150	1150	1200	1900	4050
Extended frame weight kg	1190	1190	1240	1940	/
Support weight	73	73	73	103	/

HFT-B Floor-Standing Fatigue Testing System

Model	HFT254B	HFT504B	HFT105B	HFT255B	HFT505B
Force capacity, kN (rated dynamic force)	25	50	100	250	500
Force measurement range, kN (2%-100%FS)	0.5-25	1-50	2-100	5-250	10-500
Static force accuracy	±0.5%
Dynamic force accuracy	±2%
Actuator stroke, mm	150
Displacement range, mm	0-150(±75)
Displacement resolution, mm	0.001
Displacement accuracy	±0.5%
Test frequency (Hz, Sine wave)	0.01-60
Minimum vertical space A, mm	140-1285			230-1620	420-2080
Minimum vertical space with extended columns A, mm	435-1760			700-2120	/
Base height B, mm	950				970
Column spacing C, mm	550			650	760
Column diameter D, mm	80				100
Machine width E, mm	1050			1155	1355
Machine depth F, mm	680			740	895
Machine height H, mm	2760			3215	3875
Height of machine with extended columns H, mm	3250			3715	/
Frame stiffness, N/m	5x 108			5.4x 108	7.8x 108
Machine weight, kg	760		800	1140	2080
Machine weight with extended columns, kg	800		840	1200	/
Alignment	5%
