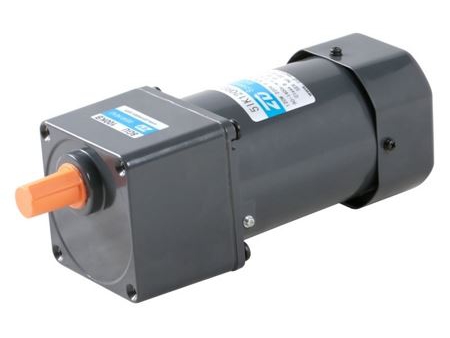

90mm 120W Speed Control Motor Manufacturer

90mm 120W Speed Control Motor

Request a Quote

View All: http://zd-drivers.com/1-2-7-speed-control-ac-gear-motor.html

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
					1200r/min m N.m	90r/min mN.m
5IK120RGU-AF	120	1ph 100	50	90～1400	750	330	530	2.10	30.0
			60	90～1700				2.50
5IK120RGU-EF	120	1ph 110	60	90～1700	750	360	530	1.65	25.0
		1ph 120						1.80
5IK120RGU-CF	120	1ph 220	50	90～1400	750	330	530	1.00	7.0
		1ph 230						0.95
5IK120RGU-HF	120	1ph 220	60	90～1700	750	360	530	1.00	7.0
		1ph 230						0.95

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	41	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
5IK120RGU-AF 5IK120RGU-EF 5IK120RGU-CF 5IK120RGU-HF	5GU()RC 5GU()RT	Allowance Torque	50Hz	4.73	5.68	7.89	9.47	11.4	15.8	18.9	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
5IK120RGU-AF 5IK120RGU-EF 5IK120RGU-CF 5IK120RGU-HF	5GU()RC 5GU()RT	Allowance Torque	60Hz	3.82	4.58	6.36	7.64	9.16	12.7	15.3	16.5	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
					1200r/min m N.m	90r/min mN.m
5IK120RGU-AF	120	1ph 100	50	90～1350	750	330	530	2.10	30.0
			60	90～1650				2.50
5IK120RGU-EF	120	1ph 110	60	90～1650	750	360	530	1.65	25.0
		1ph 120						1.80
5IK120RGU-CF	120	1ph 220	50	90～1350	750	330	530	1.00	7.0
		1ph 230						0.95
5IK120RGU-HF	120	1ph 220	60	90～1650	750	360	530	1.00	7.0
		1ph 230						0.95

Gear Motor-Torque TableAllowance Torque Unit: N.m

Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
