120W (3200±8% RPM) Power Steering Motor, PMDC Brushed Motor ZD063AX
Request a Quote
View All: http://motors-manufacturer.com/1-19-200w-3200-8-rpm-steering-motor-pmdc-motor-zd063ax.html
Your Motion
Application: electric material handling equipment
Technical Specifications
| Rated Power (W) | 120 |
| Rated Voltage(V) | 48 |
| No-load Revolution (RPM) | 3200±8% |
| No-load Current (A) | ≤1.0 |
| Rated Current (A) | ≤3.3 |
| Rated Torque(N•m) | 0.41 |
| Rated Revolution (RPM) | 2800±8% |
| Working Cycle (min.) | S2-10 |
| Insulation Class | F |
| Protection Level | IP44 |
| Gear Ratio | 32:1 |
| Deceleration Form | Planetary Gears |
| Out Torque of Gearbox (N•m) | 13.08 |
| Max Torque of Gearbox (N•m) | Double |

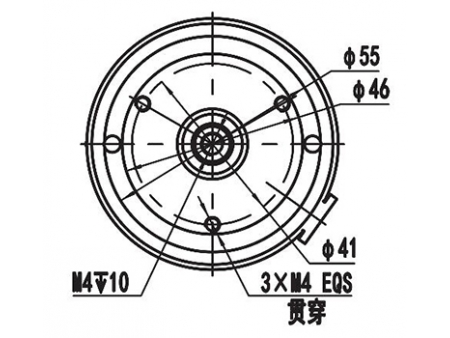

| Length (mm) | 197.5 |
Note: customization of PMDC brushed steering motor is available upon your product requests and working conditions.
