90mm 120W Reversible Motor Manufacturer

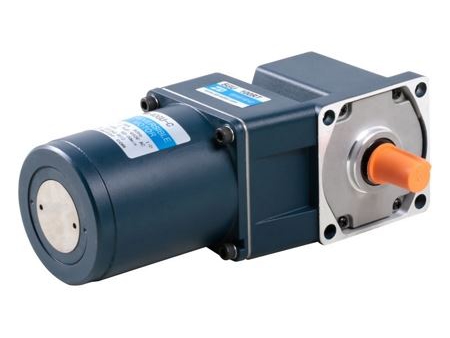

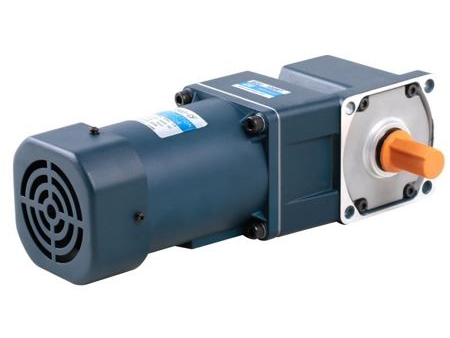

90mm 120W Reversible Motor

Request a Quote

View All: http://zd-drivers.com/1-3-7-reversible-ac-gear-motor.html

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque m N.m	Rated Speed r/min	Capacitor μF
5RK120GU-AF	120	1ph 100	50	2.25	700	930	1250	35
			60	2.85		750	1550
5RK120GU-EF	120	1ph 110	60	1.90	650	750	1550	30
		1ph 120			720
5RK120GU-CF	120	1ph 220	50	1.15	720	930	1250	8.0
		1ph 230
5RK120GU-HF	120	1ph 220	60	1.20	720	750	1550	8.0
		1ph 230

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead		Gear Ratio		7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
		Speed r/min	50Hz	200	166	120	100	83	60	50	41	30	25	20	16	15	12	10	8
		Speed r/min	60Hz	240	200	144	120	100	72	60	50	36	30	24	20	18	15	12	10
5RK120GU-AF 5RK120GU-EF 5RK120GU-CF 5RK120GU-HF	5GU()RC 5GU()RT	Allowance Torque	50Hz	4.73	5.68	7.89	9.47	11.4	15.8	18.9	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0
5RK120GU-AF 5RK120GU-EF 5RK120GU-CF 5RK120GU-HF	5GU()RC 5GU()RT	Allowance Torque	60Hz	3.82	4.58	6.36	7.64	9.16	12.7	15.3	16.5	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0

Applications

Food and Beverage Processing Sausage grillers, milk tea sealing machines, ice makers, automatic tea-roasting machines, meat grinders.

Packaging Equipment Carton sealers, kraft paper packaging machines.

Semiconductor Manufacturing: Precision handling and assembly equipment.

Battery Manufacturing Lithium battery processing systems.

Intralogistics Conveyor systems for logistics and warehousing.

Printing and Binding Conical plastic cup printers, industrial printers, paper mounting machines.

Woodworking Machinery Edge banding machines, sawing equipment, automated woodworking production lines.

Textile Industry Textile production equipment.

Livestock Management Manure removal systems, pig farming equipment, feeding systems.

Inspection Systems Security inspection machines.

Dust Removal Systems Industrial dust removal equipment.

Injection Molding Auxiliary systems for injection molding machines.

Access Control Systems Speed gates, channel gates.
