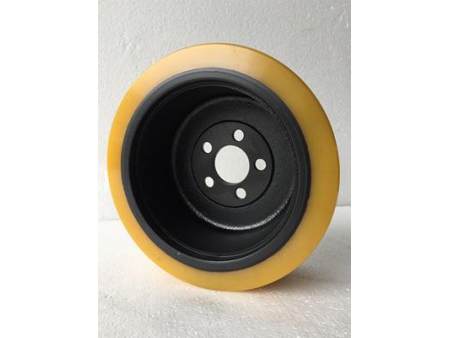

AGV Polyurethane Tyred Wheel (Automated Guided Vehicle Wheel)

AGV Polyurethane Tyred Wheel  (Automated Guided Vehicle Wheel)
AGV Polyurethane Tyred Wheel  (Automated Guided Vehicle Wheel)
AGV Polyurethane Tyred Wheel  (Automated Guided Vehicle Wheel)
AGV Polyurethane Tyred Wheel  (Automated Guided Vehicle Wheel)
AGV Polyurethane Tyred Wheel  (Automated Guided Vehicle Wheel)
Request a Quote

Our AGV polyurethane tyred wheels are made of PU material, and include load bearing wheels, driving wheels, universal wheels, balance auxiliary wheels, press-on wheels and other wheel types.

  • Dia:195 x 70(obverse side)
  • Dia:195 x 70 (reverse side)
  • Dia:44 x 17
  • Dia:60 x 35
Size select:
Name of product D (Diameter, mm) H (Height, mm) d1 (Hole diameter, mm) d2 (Depth, mm) Hole count
Driving wheel 210 70/83 172 8holes
Driving wheel 195 70 60 5 holes
Driving wheel 185 50 50 5 holes
Driving wheel 180 44 40 6 holes
Driving wheel 167 70 141 8 holes
Driving wheel 150 50/80 110 8 holes
Load bearing wheel 85 70 47 14
Load bearing wheel 80 70 47 14
Load bearing wheel 80 60 47 14
Auxiliary wheel 60 30/35
Auxiliary wheel 44 17 28 7
Load bearing wheel 85 20 42
Universal wheel 36 105 16 10

The polyurethane wheel treads and cat iron wheel centers used in the industrial polyurethane tire wheel are manufactured here at Yulin, so that we can effectively control each production process and reduce procurement costs for our customers. We have a group of talented designers who have extensive experience in designing polyurethane solid wheels for different environments, all based on potential client needs.

Features
1. Each high quality PU wheel has a high resilience performance.

2. These wheels are known for their excellent wear resistance and small compression deformation.

3. When working in low temperatures (as low as -40°C) or areas where the ground is frozen, the forklift truck is able to drive normally, thanks to these non-slip tires. Our polyurethane wheels for low temperature environments have been patented.

4. Steel ring material:
- castings: QT450 x 10
- steel components: GB/T-20

5. Polyurethane wheels are 100% non-gumming.

Our raw materials are sourced from the German company Bayer, and the Japanese company Mitsubishi, and synthesize all polyurethane pre-polymer here in house. We are equipped with a strict assay laboratory, which allows us to ensure the matching accuracy in the production of each polyurethane wheel. In addition, all wheel centers for the electric forklift trucks are produced by us here at Yulin, so that we can guarantee that the polyurethane tread is effectively bonded to the metal wheel center, and will not be degummed through sand blasting, cleaning or drying.

Besides the AGV polyurethane tyred wheel, Yulin has the abilities to manufacture polyurethane tyred wheels for forklift trucks. Yulin has been a leading polyurethane wheel manufacturer since 1998, offers all kinds of polyurethane tyred wheels with custom-made service.
