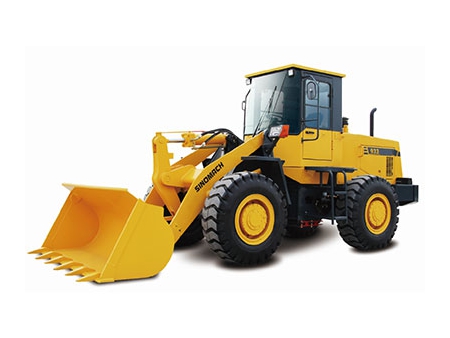

800kg Wheel Loader
Recommended application
The loading weight of the ZL-08F wheel loader is 800kg. with small turning radius, the wheel loader can adapt to operations in narrow space and thus be widely used in the construction of agricultural engineering as well as medium and small buildings, such as highways, mines, brick and tile factories, urban construction, kilns, stone factories, prefabricated cement parts factories.
The bucket adopts the convenient tailgate design, which can prevent the materials from falling during work. If need to meet different jobs requirements, a fast connector can also be selected to replace a variety of loader mount attachments to carry out jobs of different functions, such as snow bucket, fork.
- Front bucket
- Front bucket
- Fast connector
| Rated loading weight | 800kg |
| Rated bucket capacity | 0.4m3 |
| Bucket width | 1400mm |
| Track base | 1285 mm |
| Wheel base | 2170mm |
| Min. turning radius(outside of rear wheels) | 4600mm |
| Min. Ground clearance | 240mm |
| Dump height fully raised | 2300mm |
| Reach fully raised | 750mm |
| Lifting time | 4S |
| Hydraulic cycle time | 9S |
| Max. Tilt angle | 30° |
| Max. Bucket breakout, lift cylinder | 28KN |
| Operating weight | 2400kg |
| Overall dimensions (LxWxH) | 4700x1600x2350 mm |
| Driving mode | Four-wheel drive |
| Engine model | CHANGCHAI CZ2102 /L28 |
| Engine type | In-line arrangement, water cooled, two-cycle diesel engine |
| Engine starting mode | Electric |
| Rated power /Rated speed | 25KW/2300rpm,20kw/2200rpm |
| Brake mode | Four-wheel hydraulic spread-shoed brake |
| Warranty | 12 months after received the goods |
| Color | According to the requirements of customers |
| Tyre type | 7.50-16 |
| Shipping port | Qingdao port, China |
| Packing details | Nude package, 1Unit/20's GP, 3Units/40's HQ |
| Delivery time | 15 days after confirm the order |
| Supply ability | 100 units per month |
- Cab
- Seat
Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
