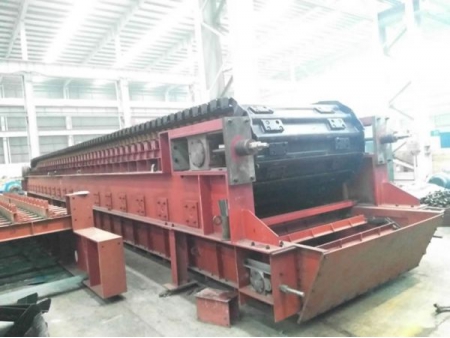

Apron feeders are used to transport a variety of large or loose materials from the material warehouse to the crusher, conveyor or other equipment, and do so in a horizontal or inclined direction. The apron feeders are widely used in building materials, metallurgy, coal, chemical and other industries for raw material handling or continuous production processes in order to carryout production connection, stream flow regulation, material pre-mixing and other work. Here at SINOMALY, we have decades of experience in the production of apron feeders, and are able to supply equipment with a single processing capacity of 3,000 tons/hour.

Technical Parameters

Model	Slot width (mm)	Dip angle(°)	Transport speed(m/s)	Material granularity (mm)	Delivery capacity (t/h)
WB800×M	800	0-25	0.014-0.14	≤350	20-80
WB1000×M	1000	0-25	0.014-0.14	≤600	40-120
WB1250×M	1250	0-25	0.014-0.14	≤700	40-200
WB1400×M	1400	0-25	0.014-0.14	≤700	40-250
WB1500×M	1500	0-25	0.014-0.14	≤800	40-300
WB1600×M	1600	0-23	0.014-0.14	≤800	40-320
WB1800×M	1800	0-23	0.014-0.14	≤900	40-600
WB2000×M	2000	0-23	0.014-0.14	≤1000	40-800
WB2200×M	2200	0-23	0.014-0.14	≤1100	40-1000
WB2300×M	2300	0-23	0.014-0.14	≤1200	40-1800
WB2400×M	2400	0-23	0.014-0.14	≤1200	40-1800
WB2500×M	2500	0-23	0.014-0.14	≤1500	40-2000
WB3000×M	3000	0-23	0.014-0.14	≤1800	500-3000

Note: The main specifications of the above plate feeders can also be customized according to client requirements.

Main structural components

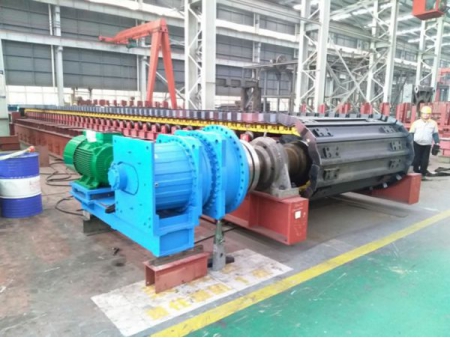

Drive
The drive is the motive and transmission part of the apron feeder. The electric motor uses frequency conversion speed regulation. By adjusting the working speed, it can be paired with other equipment, such as a crusher, in order to take full advantage of the crusher or conveyor’s efficiency, thus improving the overall production efficiency.

Tensioning device
The tensioning device is made of alloy steel, which is used for elastic adjustment of the conveyor belt. In designing the device, we took into full consideration the differences between different topography and materials, and set parameters to adapt to the transmission of every angle.

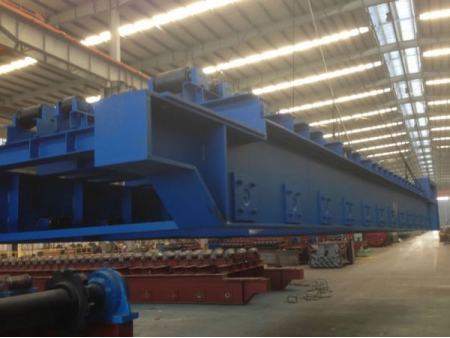

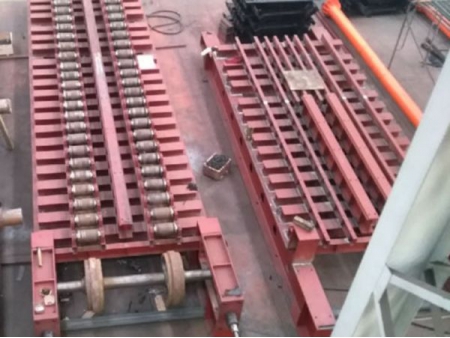

Rack
The rack is an integral frame, welded by channel steel, double T-steel and a steel plate. The materials used, such as the channel steel and I beam are thicker than those most often used on the market. The frame structure is also compact, so that the equipment takes up very little space. Backed by decades of experience, our welding rack is strong and tight, and will not loosen easily under long-term vibration.

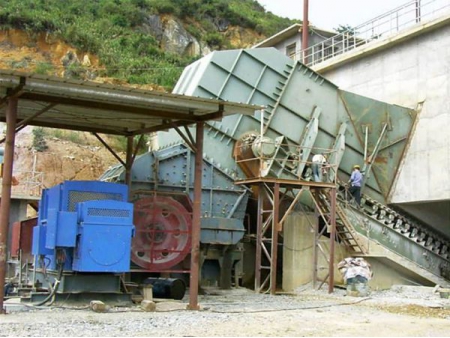

So far, we have produced nearly 100 sets of apron feeders. Shown below are some of our customers:

Equipment purchased	Applied engineering	Equipment purchased	Applied engineering
B800×3000	Kazakhstan	B1500×7650	Kansai Cement Co. , Ltd, Vietnam
B1000×3000	Saraburi, Thailand	B1500×9000	Saudi Arabia SPCC
B1000×3000	GEDEM	B1500×11000	Saudi Arabia SPCC
B1000×3000	Thanh Som Cement Co. , Ltd, Vietnam	B1500×18000	Vietnam Caesar Project
B1000×3600	Saudi SCC	B1600×5500	Saraburi Project, Thailand
B1000×5000	Fu sin cement Co., Ltd. , Vietnam	B1600×9000	Dalian Jinzhou Jinshan Cement Plant
B1000×8320	Kenya 55TPA	B1600×9000	GEDEM
B1000×9450	Kazakhstan	B1800×8000	Sulaymaniya Cement Co., Ltd, Iraq
B1000×11970	Kazakhstan	B1800×9018	Thanh Som Cement Co. , Ltd, Vietnam
B1000×18000	Kazakhstan	B1800×10000	THAI PRIDE CEMENT CO.
B1000×18000	Kazakhstan	B2000×3500	Dong Banh Cement , Vietnam
B1200×6385	Thanh Som Cement Co. , Ltd, Vietnam	B2000×8500	Saudi Arabia RCP
B1200×5000	Thanh Som Cement Co. , Ltd, Vietnam	B2000×10000	Taiwan (Guigang) Cement Co., Ltd.
B1200×3500	Dong Banh Cement , Vietnam	B2000×15000	Sinoma (Handan) Construction Co., Ltd.
B1200×6000	Dong Banh Cement , Vietnam	B2200×10000	Saudi Arabia SPCC Project
B1250×3000	GEDEM	B2300×7000	Pakistan project
B1250×4500	Kazakhstan project	B2300×10000	Liyang Jinfeng Cement Co., Ltd.
B1250×6080	Fu sin cement Co., Ltd. , Vietnam	B2300×10000	Anhui Zhongguangyuan Cement Co., Ltd.
B1250×8000	Lucky Cement Co. Ltd., Pakistan	B2300×10000	Jiangsu Hantian Cement Co., Ltd.
B1250×12000	CNBM Hangzhou Design & Research Institute	B2300×10000	Hebei Yanzhao Cement Co., Ltd.
B1400×3500	Sulaymaniya Cement Co., Ltd, Iraq	B2400×12000	Taiwan (Yingde) Cement Co., Ltd.
B1400×3600	Andriz Conch Cement	B2400×12000	Taiwan (Guigang) Cement Co., Ltd.
B1400×3600	Saudi Arabia SPCC	B1400×12042	Kazakhstan project
