Dredging Vessels

Sediment dredging by digging soils beneath water using a rotating wheel fitted buckets

  • Dredging depth: up to 15 meters

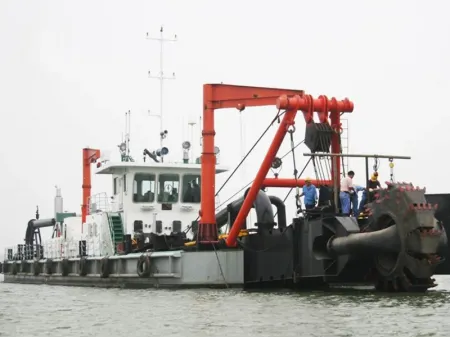

The Bucket Wheel Dredger is an advanced vessel designed for dredging, mining, and hydraulic engineering projects. It works by using a rotating bucket wheel at the front of the vessel to cut into the underwater soil or sediment. As the wheel turns, the buckets scoop up the material and transport it via an internal conveyor system to the slurry pump. The pump creates suction, turning the material into slurry, which is then discharged through a pipeline to your desired location.

If you're looking for an efficient and reliable solution for your dredging or mining project, our Bucket Wheel Dredger can help. Contact us today to discuss how we can support your project with our advanced dredging equipment!

Applications

Our Bucket Wheel Dredger is widely used in river dredging, lake sediment removal, reservoir cleaning, port construction and maintenance, coastal waterway dredging, land reclamation projects, and various other engineering applications.

  • Riverbed Mud Mining
  • Offshore Channel Widening
  • Inland River Dredging
Specifications
Model ZHD-WD-550 ZHD-WD-500 ZHD-WD-450 ZHD-WD-400 ZHD-WD-300 ZHD-WD-250
Slurry capacity 5000m³/h 3500m³/h 3000m³/h 2200m³/h 1200m³/h 800m³/h
Slurry concentration 15-20% 15-20% 15-20% 15-20% 15-20% 15-20%
Length overall (ladder raised) 39m 37m 37m 36m 29m 26m
Breadth 8.8m 7.5m 7.2m 6.8m 6m 5m
Height 2.75m 2.2m 2.0m 1.8m 1.5m 1.26m
Dredging depth 15m 15m 15m 15m 12m 12m
Discharge distance 1500m 1500m 1000m 1000m 1000m 800m
Total power 1640kW 1193kW 1007kW 806kW 648kW 351kW
Hydraulic winch 120kN 100kN 80kN 60kN 40kN 40kN
Power at shaft 500kW 250kW 170kW 115kW 65kW 45kW
Features
  • Strong Excavation Power: The bucket wheel has high cutting power, effectively excavating soil in complex geological conditions, such as hard soil and gravel.
  • High Precision Excavation: With precise control over the bucket wheel's rotation and cutting depth, it can achieve accurate dredging in specific areas.
  • Continuous Operation: The bucket wheel operates continuously, ensuring smooth sediment transportation and allowing for large volumes of excavation and transportation in a short time.
  • Environmentally Friendly: Compared to other types of dredgers, our Bucket Wheel Dredger minimizes sediment dispersion during excavation, reducing the environmental impact on surrounding water areas.
Detailed Features
Pumps

Brands: Datang, Kingda, Boxin, Shijiazhuang Industrial Pump Factory (SNG)

Diesel Engine

Brands: Cummins, Mitsubishi, Weichai

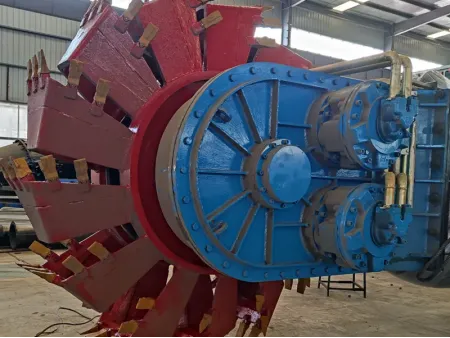

Cutter Head

Removable cutter teeth made from high-chromium alloy, ensuring excellent wear resistance.

Hydraulic System

Brands: Rexroth, Vickers, Yuken (Japanese)

PLC Control System

Brand: Siemens

Gearbox & Hydraulic Coupler

Hydraulic Coupler Brand: CNPC Jichai Power

Customer Case Studies
  • A 12-inch Bucket Wheel Dredger is operating at a construction site in China for inland river dredging. This vessel is designed to handle a flow rate of 2,200 m³/h, reach a dredging depth of 10 meters, and discharge material up to 1,000 meters away.
  • A 16-inch Bucket Wheel Dredger is operating at a construction site in Nigeria for channel dredging. This vessel is designed to handle a flow rate of 3,200 m³/h, reach a dredging depth of 9 meters, and discharge material up to 1,900 meters away.
