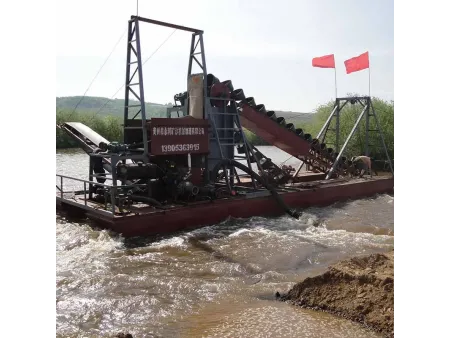

Bucket Ladder Dredger
Dredging Vessels
Ideal for the extraction of sand and gravel with an endless chain of buckets
- Dredging depth: up to 25 meters
The Bucket Ladder Dredger, also known as the bucket chain dredger, is a highly efficient tool for sand extraction. It operates by using a power unit to drive a reducer, which rotates the corner wheel, moving the chain. The buckets on the chain then scoop up sediment from the waterbed, and the material is processed through a screening system to separate sand and gravel.
With a dredging depth ranging from 4 to 40 meters below the water’s surface, this dredger can simultaneously excavate and screen sand and medium-sized stones on board. The materials can be transported directly to shore via a remote pump through pipelines or loaded onto transport vessels for further delivery to distant docks.
Contact us today to learn how our Bucket Ladder Dredger can improve your sand extraction and dredging operations!
The Bucket Ladder Dredger is widely used for sand extraction in rivers, lakes, ports, and reservoirs. It is also ideal for salt extraction, riverbed mining, channel clearing, and underwater construction projects.
- Riverbed Sand Mining
- Offshore Channel Widening
- River Channel Sand Mining
| Model | |||||
| Max. capacity | 500m³/h | 400m³/h | 300m³/h | 200m³/h | 100m³/h |
| Length overall (ladder raised) | 45m | 40m | 35m | 30m | 25m |
| Breadth | 11m | 9m | 8m | 7m | 6m |
| Height | 3m | 2.5m | 2.2m | 1.8m | 15m |
| Dredging depth | 25m | 20m | 15m | 15m | 15m |
| Total power | 500kW | 400kW | 300kW | 200kW | 150kW |
| Bucket power | 260kW | 220kW | 132kW | 75kW | 45kW |
- Strong Excavation Capability: The dredger can efficiently extract larger materials such as gravel and pebbles, and it also performs well in harder soil conditions. It is suitable for various underwater environments, excluding rock formations.
- High Extraction Efficiency: With a higher bucket capacity, the dredger can operate continuously, allowing it to excavate and transport more sand and gravel per unit of time compared to other types of dredgers.
- Energy-Efficient and Effective: Combining both extraction and screening processes into one step, this dredger improves overall operational efficiency while reducing energy consumption.
Brands: Cummins, Weichai

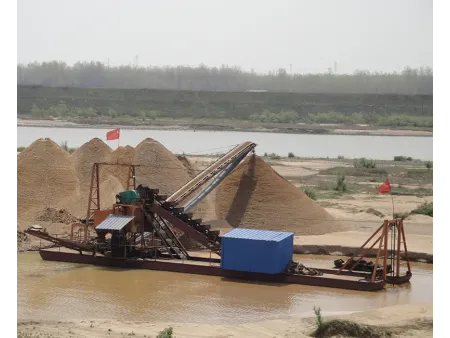

- This dredger, with a dredging depth of 12 meters and a processing capacity of 150 m³/h, is equipped with extraction, screening, washing, and sand and stone transportation functions. It is currently being used at a river sand mining site in Dalian, providing efficient material handling for ongoing operations.
- At a reservoir expansion project in Henan, a dredger with a dredging depth of 15 meters and a processing capacity of 200 m³/h is playing a key role. Equipped with extraction, screening, and sand and stone transportation capabilities, it helps enhance the reservoir’s capacity and overall functionality.
- A dredger with a dredging depth of 13 meters and a processing capacity of 300-400 m³/h is being used in a river and lake dredging expansion project in China. Equipped with extraction and transportation capabilities, it plays a crucial role in expanding waterways and improving navigation and water management.
