Rubber extruder filter for processing hard rubber

Introducing our high pressure rubber precision preformer, an innovative solution designed to cater to the growing demands of the rubber industry. Developed specifically for processing hard rubber or specialized rubber, the high pressure rubber precision preformer fills a crucial gap that standard preformers cannot address.

With production yields up to 6 times higher than machines operating at the standard pressure of 210 bar (3000 psi), our high pressure series stands as a powerful choice for industries requiring stringent filtration or impurity removal. While all Chengqian machines offer filtration capabilities, the standard units may occasionally impact output. In contrast, our high pressure series, capable of achieving a rubber extrusion pressure of 5500 psi, ideally meets the needs of rubber product manufacturers.

ES-20PH

Rubber Precision Preformer

Item Unit ES-20PH
Standard Extruding Pressure psi 5000
Load Position Front
Barrel Diameter mm 200
Max. Output kg/hr 270
Max. Die Diameter mm 127
Total Power kW 26
Oil Reservoir L 200
Air Supply mpa 0.6-1.0
Water Supply (at 25℃) L/min 35L
Weight kg 4000
Dimensions (L*W*H) mm 4000*1100*1750

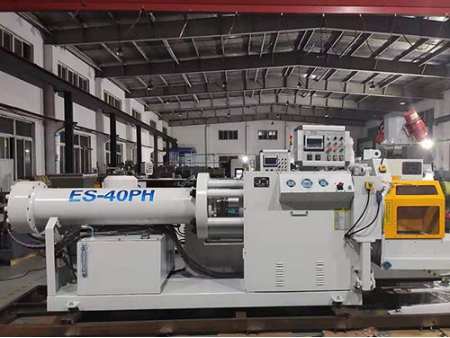

ES-40PH

Rubber Precision Preformer

Item Unit ES-40PH
Standard Extruding Pressure psi 5000
Load Position Front
Barrel Diameter mm 250
Max. Output kg/hr 650
Max. Die Diameter mm 190
Total Power kW 32
Oil Reservoir L 240
Air Supply mpa 0.6-1.0
Water Supply (at 25℃) L/min 35L
Weight kg 5000
Dimensions (L*W*H) mm 5200*1100*1750
We are a rubber machinery manufacturer, specializing in equipment such as rubber preformer machines, ram extruders, rubber blank manufacturing equipment, rubber strainers, and rubber cooling conveyor systems.
The extrusion pressure for our rubber extruders in the current page can reach up to 210 bar.

Rubber products are commonly formed using rubber extrusion, where an extrusion machine forces rubber material through different-shaped extrusion heads at high pressure to create various primary rubber products.

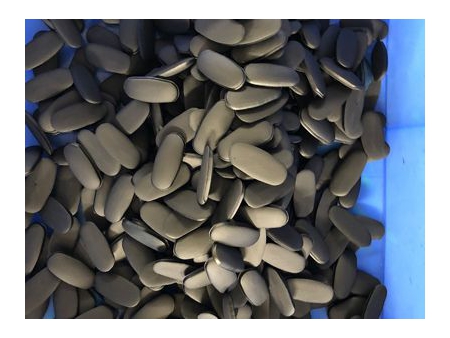

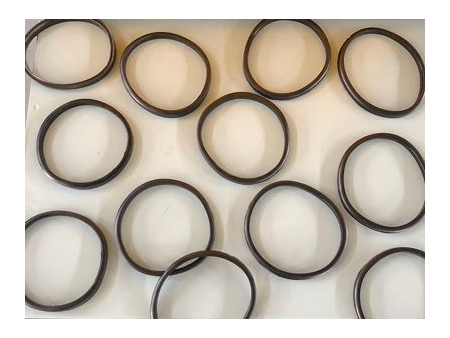

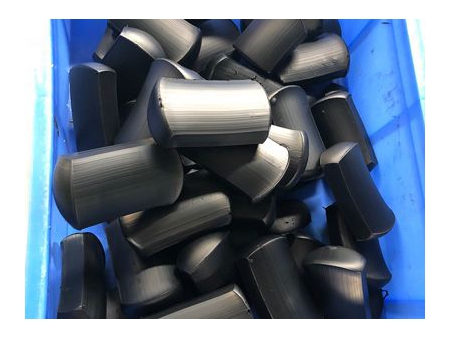

Our preforming equipment can handle circular rubber products, rubber seal and rubber strip, 3D rubber part and various complex rubber blanks.
We offer a default 12-month warranty service, and even after the warranty period, we continue to provide discounted technical support and rubber machine parts for our rubber machinery.
We provide training for rubber equipment operators.
Our company has extensive experience in the design, research, manufacturing, sales, and after-sales service of rubber processing equipment. We provide comprehensive solutions for rubber product manufacturers. To date, rubber product manufacturers from various countries such as Brazil, Thailand, India, the United States, Russia, and South Korea have purchased our rubber equipment and provided positive feedback.
