S Series Dimmable and CCT Tunable LED Track Lighting Head
Request a Quote
Features
- Smart control of brightness from 1% to 100% and color temperature from 2700K-6000K.
- The LED driver of the track light is of high quality, high efficiency and energy saving.
- S series LED track lights have different dimming options, such as DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee.
- Four kinds of beam angle: 15°, 24°, 38°and 60°are available.
- Environmentally friendly: it does not emit any pollution, such as lead, mercury or other pollutants
- With the over-temperature protection, over-current protection, over-voltage protection, increase life span.
Specification
- Power 30W/35W/40W
- LED Chip Citizen/CREE COB
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and other brands are available
- Dimming option DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.9
- Input Voltage AC220-240V/AC100-240V 50/60Hz
- Reflector Beam Angle 15/24/38/60°
- Characteristic Intelligent control of brightness and color temperature
- Body Material ADC12 die-casting aluminum alloy
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black / white
- Track adapter Global, PowerGear and other brands are available
- Phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 3-5 Years
Dimensions
30W/35W/40WProduct Models
| Model No. | Power | Dimension | LED Chip LED | CCT | CRI | Luminous Efficacy | |
| BH-TL-30W-S | 30W | Φ90*L200mm | Citizen/ CREE COB | 2700K~6000K | 80 90 | 90-100LM/W @CRI80 | |
| BH-TL-35W-S | 35W | ||||||
| BH-TL-40W-S | 40W |
Photometric

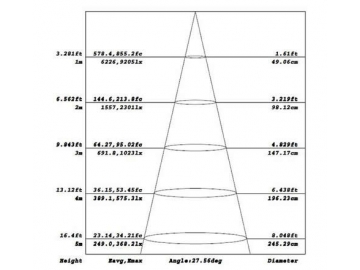

- Luminous Intensity Distribution Diagram 30W 4000K Beam Angle 24°
- The Average Illuminance Effective Figure 30W 4000K Beam Angle 24°

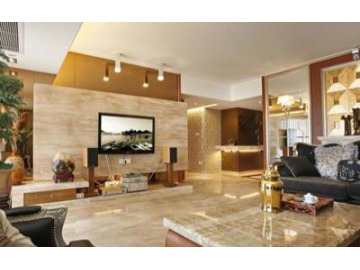

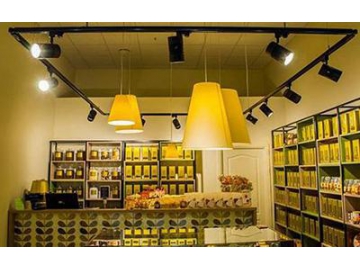

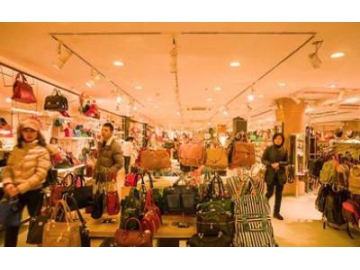

Application
LED track lights can be used in galleries, museums, retail stores, shopping malls, exhibition halls and other commercial or private places.
