Request a Quote
  • Watts: 28.8W/M
  • Lumens: 4600lm /led
  • LED: 120 x 5630 SMD
  • Voltage: 24V
  • Application: Feature
Features:
  • Various color temperatures are optional, including 2400K / 2700K / 3000K/ 4000K / 6000K
  • 5630high bright LED brand (single led 30-35lm)
  • Double layer copper FPC (2OZthickness), high quality resistance, preventing LED chip brekage
  • DC12V/24Vinput, safe and stable,2 year warranty
  • The range of color temperature is 2850K-6500KCCT
  • 6-LEDs as a unit and can be cut to different lengths
  • Original imported 3M adhesive, easy installation
Installation method:

Remoe the protective 3M adhesive tape from the back of the LED strip during installation, then attach the LED strip to the desired location.

Applications:

Suitable for indoor and outdoor characteristic lighting such as niches, grooves, bases, signs, hotels, bars, and kitchens.

Technical parameters:
Model LED chip Power(W/M) Max daisy chain(led/M) Nominal voltage( V ) Color temperature(K) Luminous flux(lm /led) Color rendering index R(CRI) Dimension(length*width*height mm) IP rating (modules)
SL-LR-5630WW600CCT-24 SMD 5630 28.8 120 24 PW 6000K / 4600 80 5000*12*1.4 IP20 / IP64 / IP65 / IP68
NW 4000K/ WW 2400-3000K
Protection level:

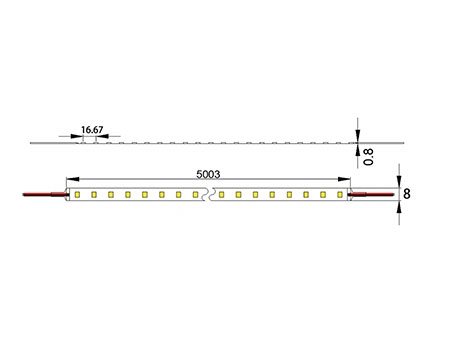

Dimension (Unit:mm [in]):

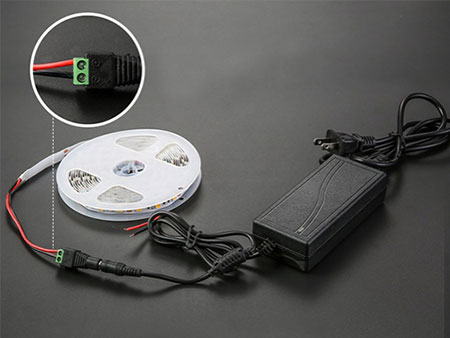

Installation diagram:

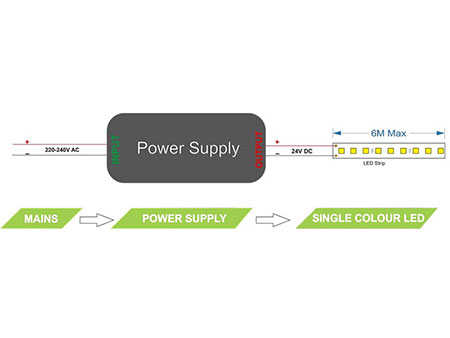

  • Power connect single strip

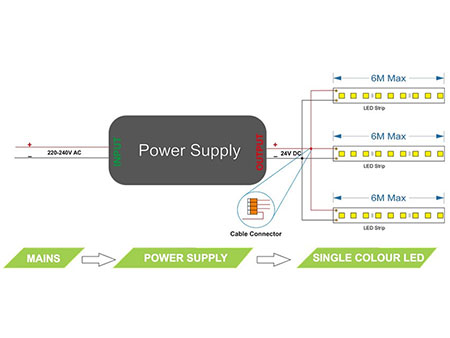

  • Power connect multiple strips

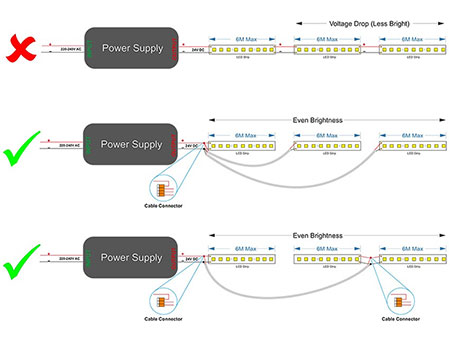

  • Recommend and not recommend connect method

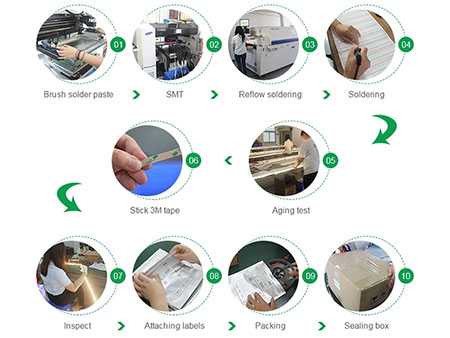

Manufacturing process:

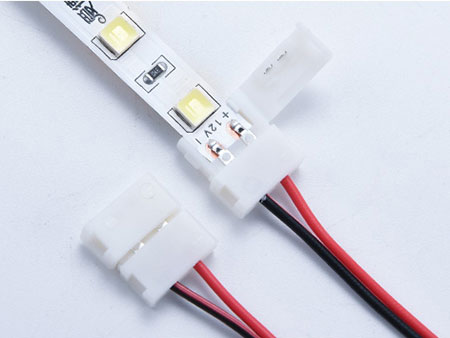

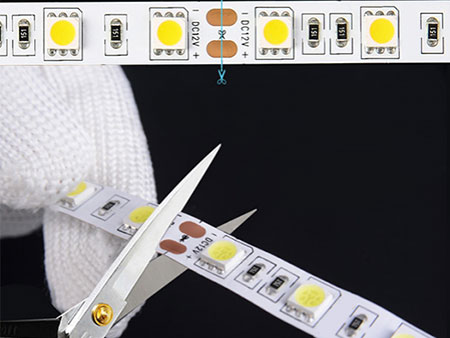

Instructions for cutting, welding, pasting and joining:
Safety precautions:
  • The CCT LED tape can only be used after removing the package. Before use, please confirm whether the product was damaged during transportation. If it was, it should not be installed or used.
  • Please select a suitable power supply for use and check the voltage range before use.
  • The best working environment temperature of the product is -25°C ~ 60°C, and the storage environment temperature is -40°C ~ 80°C.
  • The product should be installed in a location with an excellent ventilation and heat dissipation. It is not recommended for installation in a sealed space as that will affect the heat dissipation.
  • Please cut off the electricity supply during installation, and then power on. Do not touch the product during use.
  • Please pay attention to the protection of static electricity during installation and use.
  • The product can be used indoors or outdoors according to its IP rating.
  • Avoid shining it directly into your eyes during use.
  • Please refer to the product parameters and instructions for use.
