Request a Quote
Features
  • The color render index (CRI) is Ra97 (2700K/3000K/4000K), which displays the natural color of objects
  • Smart control of brightness from 1% to 100%.
  • The LED driver of the track light is of high quality, high efficiency and energy saving.
  • W series LED track lights have different dimming options, such as DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee.
  • It is environmentally friendly with no UV light or infrared light. During the production, there is no pollution, such as lead, mercury or other pollutants emitted.
  • With the over-temperature protection, over-current protection, over-voltage protection, increase life span
Specification
  • Power 30W/35W/40W
  • LED Chip Citizen/CREE COB
  • LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE and other brands are available
  • Dimming option DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
  • PF >0.9
  • Input Voltage AC220-240V/AC100-240V 50/60Hz
  • Characteristic Intelligent control of brightness
  • Body Material ADC12 die-casting aluminum alloy
  • Adjustable 350° rotation horizontally and 90° pivot
  • Housing color Black / white
  • Track adapter Global, PowerGear and other brands are available
  • Phase 1 /2 /3 phase
  • Lifespan 50000 hours
  • Warranty 3-5 Years
Dimensions
Product Models
Model No.
Power
Dimension
LED Chip LED CCT
CRI
Luminous Efficacy
Reflector Beam
Angle

BH-TL-30W-W 30W Φ90*L200mm Citizen/
CREE COB
2700K
3000K
3500K
4000K
5000K
80
90
97
90-100LM/W @CRI80 15/24/38/60°
BH-TL-35W-W 35W
BH-TL-40W-W 40W
Photometric

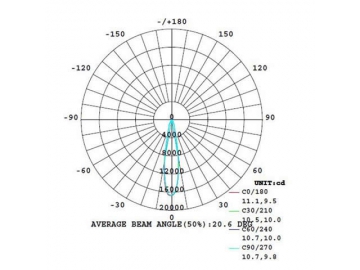

  • Luminous Intensity Distribution Diagram 35W 4000K Beam Angle 15°

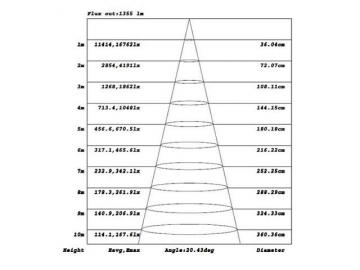

  • The Average Illuminance Effective Figure 35W 4000K Beam Angle 15°

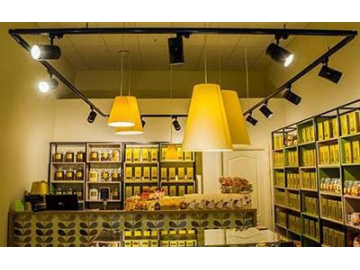

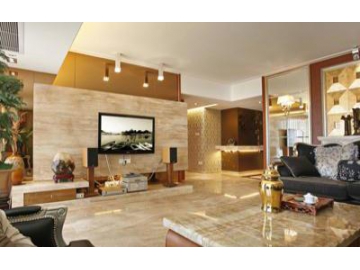

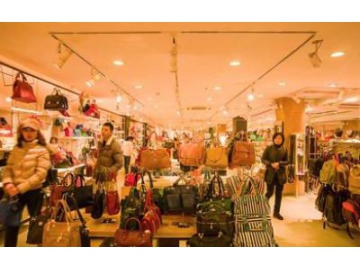

Application

LED track lights can be used in galleries, museums, retail stores, shopping malls, exhibition halls and other commercial or private places.
