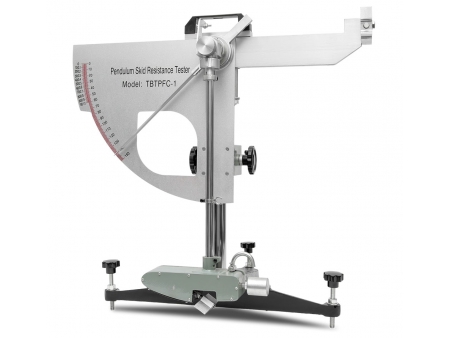

TBTPFC-1 Skid Resistance and Friction Tester

Request a Quote

Website: http://tbttek.com/1-23-on-siet-tester.html

TBTPFC-1 skid resistance and friction tester is used to determine the skid resistance of asphalt pavement or cement concrete pavement.

Standard: ASTM E303, EN 1097

Technical Parameters

Pendulum head weight	1500±30g
Rubber pad positive static pressure onto pavement surface	22.2±0.5N
Orthocenter to pendulum center distance	410±5mm

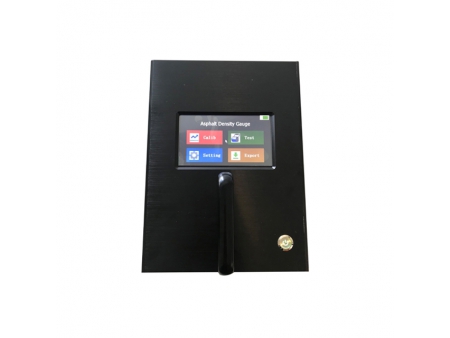

TBTEDG-1A non-nuclear asphalt density gauge is a portable non-destructive pavement quality indicator, featuring a touch screen and user friendly graphical menu interface.
It is mainly used to measure the density of asphalt materials in new pavements, including upper, middle and lower layers of the pavement structure.
It is also suitable for old asphalt pavements that are free of pollution, with smooth and non-loose surface.

Features

Rapid and accurate density and compaction measurement

Non-nuclear technology eliminates licensing, radiation safety and regulatory requirements

Readings available within 3s

Touch screen operation for simple and intuitive use

Density measurement in universal units (g/cm³ or kg/m³)

High precision and stable performance

Data export via USB storage device

Technical Parameters

Operating temp.	0~70℃
Measuring depth	2cm~30cm
Temp. sensor range	0~350℃
Display content	density / compaction / porosity
Measuring time	<3 second
Measuring accuracy	3%
Main unit dimension	around 256x189x75mm
5.1inch touch screen and 32G storage capacity
Power supply	12V 5000mAh Li-battery (can be used continuously for approx. 20h)
