KSD Series Brass 3/2-Way Solenoid Valve
- Direct Acting, Normally Closed
- Port Size: 1/8"–3/8"
- Fluid Temperature: -5°C to 80°C (-5°C to 120℃)
- Operating Pressure: 0–1.0MPa
- Media: air, water, oil, gas
KSD Series is a multifunctional solenoid valve available in both 2/2-way and 3/2-way configurations. It features a compact and durable structure with an operating pressure range of 0-10 bar. This valve is engineered with high-quality materials and precision machining, delivering fast response, low power consumption, and stable switching performance over hundreds of thousands of cycles. This valve supports a wide range of industrial fluid and pneumatic control applications, offering flexible mounting options (horizontal/vertical mounting) and easy maintenance.
- Bottom mounting holes ensure secure installation in vibration-prone environments
- Direct-acting structure provides fast response and low power consumption
- Built with corrosion-resistant brass suitable for various media
- The 3/2-way structure has an integrated top interface, saving installation space and reducing external fittings
- Optimized internal structure supporting high-frequency operation and extends service life
- Available in multiple port sizes, sealing materials, and special coatings customization for different media
- Complies with industry standards, while supporting easy maintenance and quick part replacement
This valve is mainly used in scenarios that involve compressed air, water, hydraulic oil, and other neutral media, such as:
- Automotive sealant dispensing systems
- Industrial automation equipment
- Pneumatic control systems

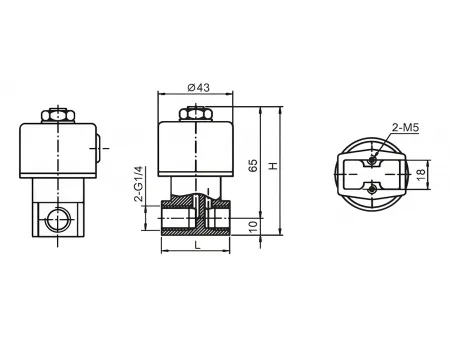

| Model | Port Size | L | H |
| | 1/4" | 40 | 75 |
| | 1/4" | 41 | 95 |
| | 3/8" | 40 | 75 |
| | 3/8" | 41 | 95 |
| Category | 3/2-way solenoid valves | ||
| Mode of operation | Direct acting | Port size | 1/8"–3/8" |
| Series | KSD | Function | Normally closed (NC), 3/2-way |
| Body material | Brass | Wiring | Flying leads/DIN connector |
| Control method | Solenoid valve | Protection level | IP43/IP65/IP67 |
| Operating pressure | 0–1.0MPa | Mounting | Bottom mounting |
| Sealing material | NBR, EPDM, Viton | Recommended installation method | Horizontally or vertically |
| Fluid temperature | -5°C to 80°C (-5℃ to 120℃) | Thread options | BSP, NPT thread |
Yes. The KSD Series solenoid valve body is compact and supports quick plug-in connections for tight spaces.
No problem. The voltage can be customized (DC12–48V / AC24–240V). Wide-voltage dual-use (DC/AC) versions are also available.
Yes. The standard protection rating for the valve is IP65, and it can be upgraded to IP68 for outdoor, marine, or washdown environments, such as construction machinery or marine systems.
