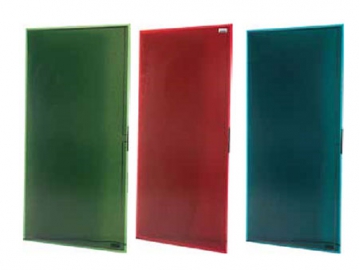

Cdte Thin Film Solar Panel LYF-S1
Request a Quote
Features
- Cdte thin film PV module
- Double sided tempered glass
- Size: 1200*600*6.8mm
- Module efficiency: 13.9%
- More energy output
Higher conversion efficiency: the absorption coefficient is 100 times that of crystalline silicon, with the highest test efficiency of 22.1%, which means a higher intensity attenuation of the light passing through a material to increase energy production.
Lower temperature coefficient: The temperature coefficient is -0.21% / ℃. In areas with better sunlight, the module temperature can reach above 50 ℃. Lower temperature coefficients can ensure a better performance under hot environment. - Higher reliability
High stability
Little hot spot effect - 30-year performance warranty
- 10-year quality warranty
Description
Our thin film solar panel features a high efficiency and stability. The temperature coefficient of the cadmium telluride thin film module is low, ensuring a high performance even under high temperatures. The efficiency under low sunlight conditions is also better than that of a crystalline silicon solar cell. The thin-film module has no intrinsic light-induced attenuation effects, thus, it generates exceptionally stable electricity with very low chances of a hot spot effect to prevent overheating.
Technical Parameters

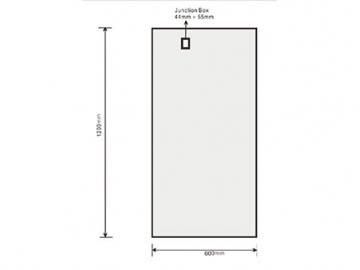

| Mechanical Parameters | |
| Length | 1200mm |
| Width | 600mm |
| Weight | 12.3kg |
| Thickness | 6.8mm |
| Area | 0.72m2 |
| Individual leadwire | 1.5mm2 |
| Connectors | MC4/MC4 equivalent |
| Junction box | IP68 |
| Cell type | Thin film |
| Front glass | Extra clear tempered glass, 3.2mm |
| Back glass | Tempered glass 3.2mm |
| Encapsulation | PVB |
| Load rating | Static: 5400Pa Wind: 2400Pa |
Module numbers and ratings at standard test conditions(1000W/m2, AM 1.5, 25°C)
| Nominal values | 85 | 90 | 100 | |
| Nominal power (-0/ 5W) | PMPP (W) | 85 | 90 | 100 |
| Voltage at Pmax | VMPP (V) | 95.5 | 96 | 98.5 |
| Current at Pmax | IMPP (A) | 0.89 | 0.94 | 1.02 |
| Open circuit voltage | VOC (V) | 121.5 | 122 | 123.5 |
| Short circuit current | ISC (A) | 1.02 | 1.06 | 1.13 |
| Module efficiency | % | 11.8 | 12.5 | 13.9 |
| Operation temperature | ℃ | -40~ 85 | -40~ 85 | -40~ 85 |
| Maximum system voltage | VSYS (V) | 1000 | 1000 | 1000 |
| Maximum series fuse | ICF (A) | 2A | 2A | 2A |
