Rolling Thin Film Oven
Request a Quote
TBT-0609 Rolling Thin Film Oven
Technical Parameters
| Product Model | 82 |
| Mains voltage | 220V, 50HZ, 2.5kW |
| Control accuracy | 163℃±0.5℃ |
| Revolving speed of sample turntable | 5.5r/min |
| Time for each test | 5.25h |
| Dimension of the workroom | 430×410×450mm |
| Quantity of samples for each test | 4pcs |

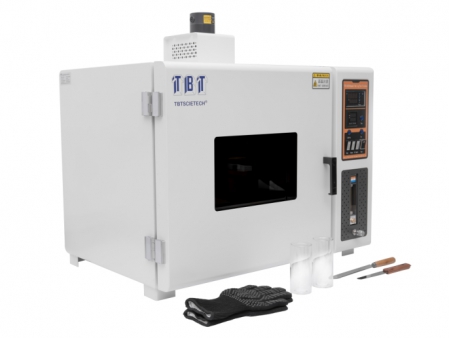

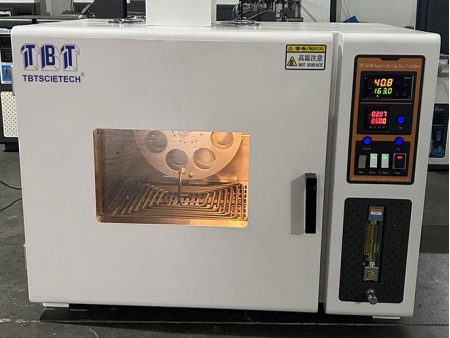

TBT-0610W Asphalt Rolling Thin Film Oven
TBT-0610W is used to determine the mass loss of highway asphalt rolling thin film after heating, and the changes in penetration, viscosity, ductility and breaking point of asphalt residue after specimen has been heated. It simulates short-term aging of asphalt binders, allowing for precise evaluation of the asphalt residue physical properties.
Standards: ASTM D2872, AASHTO T240, EN 12607-1, GOST 33140-2014
Features
- Stainless steel inner chamber
- Built-in air compressor with flow meter control
- High-precision temperature controller
- Temperature recovery to 163°C within 10min after specimen loading
- Automatic power-off when preset time is reached to prevent over-aging
- Door-open alarm during testing; temperature calibration port (optional)
- Dedicated port for thermometer insertion for temperature calibration (optional)
- Viewing window and internal lighting for monitoring specimen and thermometer
Technical Parameters
| Working temperature | 163℃ |
| Temperature control precision | ±0.5℃ |
| Speed of rotating disk | 15±0.2 rpm |
| Air flow rate | 4000±200 ml /min |
| Motor speed | 1725±100 rpm |
| Timer | Alert at 85 min. |
| Ambient temperature | 15~35℃ |
| Relative humidity | ≤85% |
| Power supply | 220V, 50Hz |
| Heating power | 2.2kW |
