Nine-Head Gantry Horizontal Concrete Cutter

Request a Quote

View All: http://wallpanel-machines.com/2-7-10-cutting-line.html

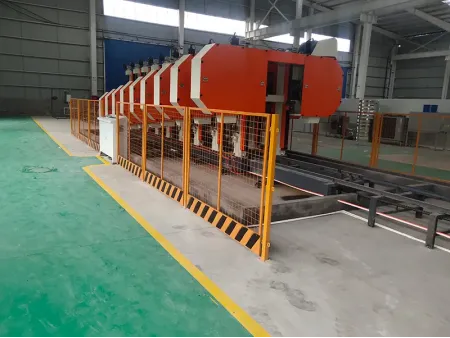

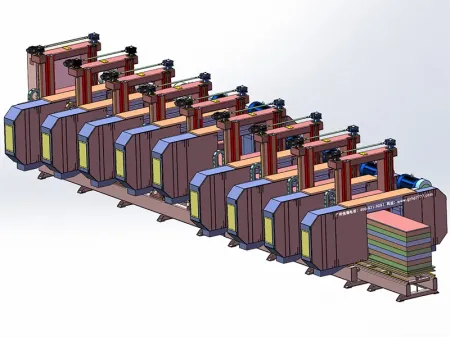

The nine-head gantry horizontal concrete cutter is equipped with nine saw blades for parallel cutting of concrete cakes. The concrete cakes automatically pass through the cutting track to complete the cutting process. The dimensions of the concrete cakes are:
3.0m x 0.9m x 0.6m, 3.4m x 0.9m x 0.6m, 4.2m x 1.2m x 0.6m

The single cutting volume ranges from 1.6 to 3.0m³. This cutter can be combined with single-track, three-track, and four-track vertical concrete cutter to complete the cutting of concrete products. It can also be used independently for cutting wall panels.

Specifications

Model: HDPQ-004
Dimensions: 12000×3340×2950mm
Power: 165kW
Flywheel diameter: 900mm
Cutting speed: 20-30m³/h
Cutting height: 100mm, 150mm, 200mm, 240mm, 300mm, 350mm (or customizable)

Features

Easy size adjustment: fully PLC-controlled, input the required cutting dimensions (any size within 600mm), and the cutting task is completed automatically, making factory management easier.

Precise and beautiful dimensions: cutting size error is less than 1mm. The entire cutting process is controlled online by a computer (the concrete cake does not leave the bottom plate), ensuring high precision and a smooth, aesthetically pleasing surface.

Labor-saving: one person can complete the cutting process.

Easy saw blade replacement: saw blades can be changed in 1-2 minutes.

Low cutting loss costs: the saw head cuts vertically downwards without negative pressure, reducing friction on the saw blade, making it more durable and saving production costs.

Superior performance: capable of cutting semi-dry, semi wet concrete cakes (0.5-2MPA) and hardened concrete cakes (3.5-5MPA).

Multi-functional: it can cut non-autoclaved aerated concrete (NAAC) blocks, EPS concrete blocks, and lightweight aggregate blocks and wall panels such as ceramist or perlite blocks.
