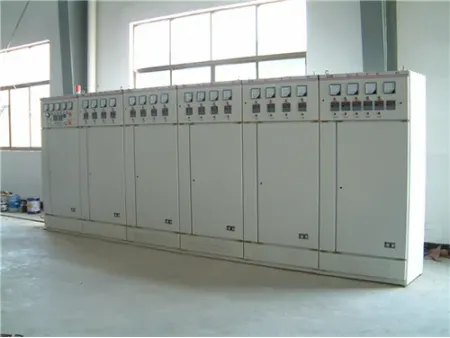

Freestanding AC Low-Voltage Distribution Cabinet
Electrical Enclosures
The AC low-voltage distribution cabinet is designed for power systems in power plants, substations, and industrial or mining enterprises. It operates at AC 50 Hz, with a rated working voltage of 380 V and a rated current up to 3150 A. The cabinet is used for power conversion, distribution, and control of electrical equipment such as motors, lighting, and other distribution devices. It complies with IEC 439 and GB 7251 standards for safety and performance.
- The cabinet adopts a universal frame structure, assembled from high-quality profiles for enhanced rigidity and modularity.
- Designed with optimized heat dissipation, ensuring stable operation during long-term use.
- The rotary hinge door is easy to install and remove, simplifying maintenance.
- Instrument doors with electrical components are connected to the frame using multi-strand copper wires for reliable grounding.
- The cabinet surface is finished with high-voltage electrostatic powder coating, providing corrosion resistance and an attractive appearance.
- Protection Level: IP30–IP40
| Model | Dimensions | ||
| W (mm) | H (mm) | D (mm) | |
| | 2200 | 600 | 600 |
| | 2200 | 600 | 800 |
| | 2200 | 800 | 600 |
| | 2200 | 800 | 800 |
| | 2200 | 1000 | 600 |
| | 2200 | 1000 | 800 |
| | 2200 | 1200 | 600 |
| | 2200 | 1200 | 800 |
What applications is the AC Low-Voltage Distribution Cabinet suitable for?
The AC low-voltage distribution cabinet is widely used in industrial enterprises, commercial buildings, and residential complexes for low-voltage power distribution systems.
What safety features are included in this distribution cabinet?
The cabinet offers multiple layers of safety protection. It is constructed from high-quality steel with excellent mechanical strength and protective performance, effectively preventing external impact, dust intrusion, and ensuring safe operation of electrical components.
