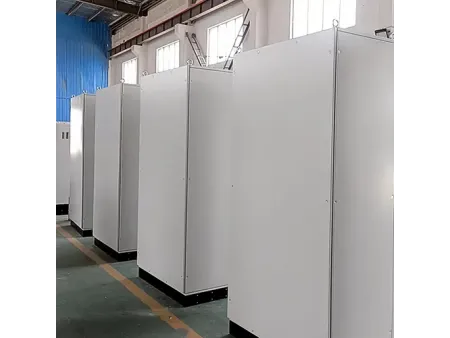

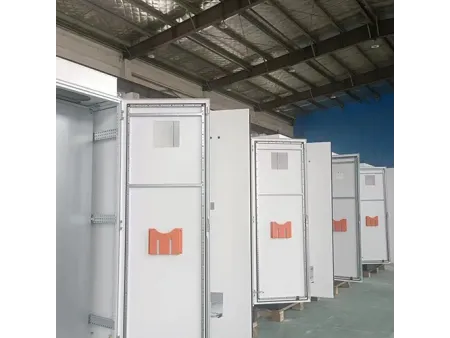

Freestanding Enclosure

Request a Quote

Website: http://controlcabinet-en.com/1-3-2-freestanding-enclosure.html

Electrical Enclosures

CBES Series

Protection Level: IP55 (according to GB 4208 / IEC 60529), suitable for outdoor or humid environments.
The main frame is constructed with a five-fold steel profile through full welding, ensuring high structural strength and cabinet rigidity.
The square-tube reinforcement bar strengthens the door panel and can also be used to fix electrical components in combination with the door mounting strip.
25 mm modular holes on the frame provide flexibility and compatibility for component installation.
The galvanized mounting plate is equipped with nylon sliders, allowing front insertion along the guide rails. Both sides feature U-shaped folded edges for better rigidity and easier handling.

Specifications

Model	Dimensions			Model	Dimensions
Model	H (mm)	W (mm)	D (mm)	Model	H (mm)	W (mm)	D (mm)
CBES 10060 30	1000	600	300	CBES 18080 30	1800	800	300
CBES 10060 40	1000	600	400	CBES 18080 40	1800	800	400
CBES 10080 30	1000	800	300	CBES 18080 50	1800	800	500
CBES 10080 40	1000	800	400	CBES 18080 60	1800	800	600
CBES 12080 30	1200	800	300	CBES 180100 40	1800	1000	400
CBES 12080 40	1200	800	400	CBES 180100 50	1800	1000	500
CBES 120100 30	1200	1000	300	CBES 180100 60	1800	1000	600
CBES 120100 40	1200	1000	400	CBES 180100 80	1800	1000	800
CBES 120120 30	1200	1200	300	CBES 180120 40	1800	1200	400
CBES 120120 40	1200	1200	400	CBES 180120 50	1800	1200	500
CBES 14060 30	1400	600	300	CBES 180120 60	1800	1200	600
CBES 14060 40	1400	600	400	CBES 180120 80	1800	1200	800
CBES 14080 30	1400	800	300	CBES 20060 30	2000	600	300
CBES 14080 40	1400	800	400	CBES 20060 40	2000	600	400
CBES 140100 30	1400	1000	300	CBES 20060 50	2000	600	500
CBES 140100 40	1400	1000	400	CBES 20060 60	2000	600	600
CBES 140120 30	1400	1200	300	CBES 20080 30	2000	800	300
CBES 140120 40	1400	1200	400	CBES 20080 40	2000	800	400
CBES 16060 30	1600	600	300	CBES 20080 50	2000	800	500
CBES 16060 40	1600	600	400	CBES 20080 60	2000	800	600
CBES 16080 30	1600	800	300	CBES 20080 80	2000	800	800
CBES 16080 40	1600	800	400	CBES 200100 30	2000	1000	300
CBES 160100 30	1600	1000	300	CBES 200100 40	2000	1000	400
CBES 160100 40	1600	1000	400	CBES 200100 50	2000	1000	500
CBES 160120 30	1600	1200	300	CBES 200100 60	2000	1000	600
CBES 160120 40	1600	1200	400	CBES 200100 80	2000	1000	800
CBES 18060 30	1800	600	300	CBES 200120 40	2000	1200	400
CBES 18060 40	1800	600	400	CBES 200120 50	2000	1200	500
CBES 18060 50	1800	600	500	CBES 200120 60	2000	1200	600
CBES 18060 60	1800	600	600	CBES 200120 80	2000	1200	800

Configurations

One galvanized mounting plate
Two door mounting strips
One document pocket
Two mounting vertical beams
Single front door with rear panel
Protection Level: IP55
Surface Treatment: Phosphated primer with external powder coating
Color: RAL7032 / RAL7035
Material: Cold-rolled steel, optional stainless steel 304
Thickness: Frame (five-fold steel profile) 1.5 mm; door 2.0 mm; galvanized mounting plate 2.5 mm

Can the shelf height inside the Cabinet & Enclosure Systems be adjusted?

Yes. The cabinet shelves have multiple adjustable positions, allowing flexible arrangement of installed equipment.

What is the protection rating of the Server and Network Cabinets, and can they be used outdoors?

The protection rating is IP54, which provides effective resistance against dust and splashing water. These cabinets can be used in general outdoor environments, but for long-term exposure to harsh conditions such as heavy rain or strong dust, additional protective measures are recommended.

Can the dimensions of the Control Cabinet System be customized?

Yes. Customization services are available to meet specific dimensional and configuration requirements based on customer needs.
