Tube Printing Machine

Request a Quote

View All: http://alutubeline.com/1-3-7-tube-printing-machine.html

Description of product
The YSD tube printing machine is used for color printing on the metal tube's surface, including aluminum tubes and aluminum cans. We offer three types of tube printing machines: 4 colors, 5 colors and 6 colors.

The machine is easy to operate and the printing precision is high, by using a well-known indexing mechanism. which adopts Ferguson indexing mechanism. The eight shaft disk, cam and other key parts are processed using computer numerical control equipment, which is accurate and reliable.

Technical parameters

type	YSD01	YSD02	YSD03
printable color quantity	4	5	6
suitable diameter of tube	11mm-38mm	11mm-38mm	11mm-38mm
maximum production rate	60 tubes/minute	60 tubes/minute	60 tubes/minute
motor power	5.5KW	5.5KW	5.5KW
dimension	210015301600mm	210015301600mm	210015301600mm
weight	3800KG	3800KG	3800KG

Main features

The entire machine whole machine is PLC controlled and can be adjusted using frequency conversion.
The production information is automatically displayed using a text displayer.
The machine has an accurate coloring and high printing accuracy.
The machine can automatically move up and down the tube, so that when there is no tube, the machine will stop printing.

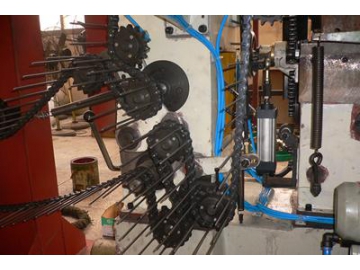

Conveyor chain

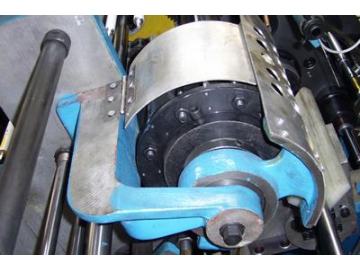

Turntable of falling slot

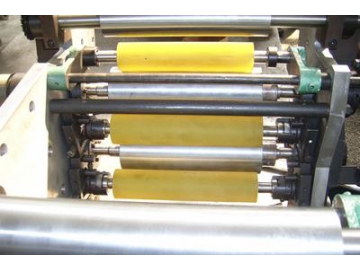

Upper ink roller

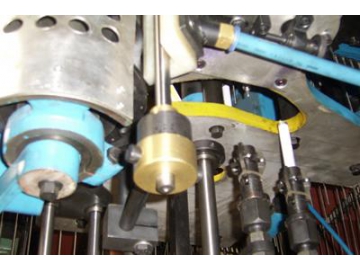

Upper and under tube of manipulator
