Filter
Request a Quote

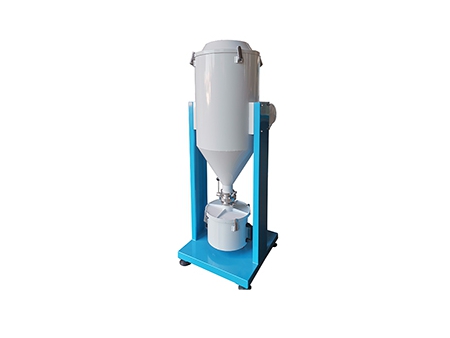

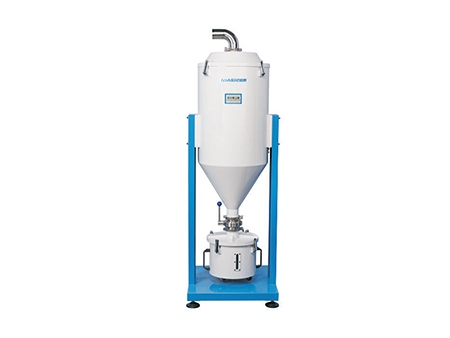

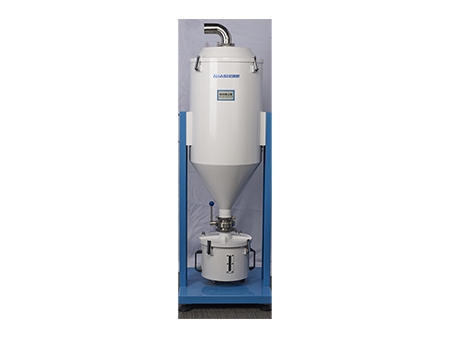

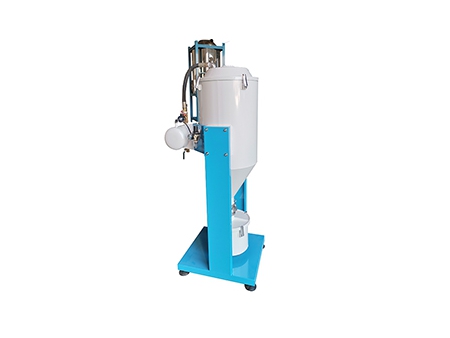

Central filter is used as dust collector by utilizing bag filters to eliminate dust and other impurities produced during plastic production process. This central filter not only provides a clean work environment, but also efficiently protects blower and other equipment.
Features:
- Compact structure, easy operation
- Bag filters

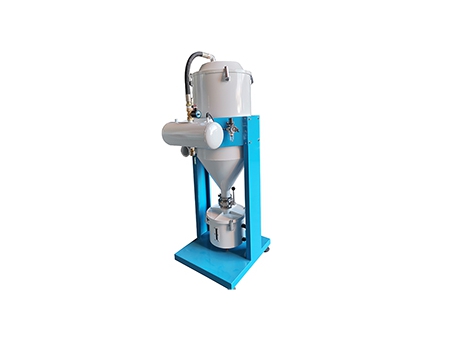

- Configured with pressurized air accumulator to supply sufficient high pressure air for dust removal and cleaning
- Dust collection bin is connected to the main unit, facilitating the cleaning inside the bin

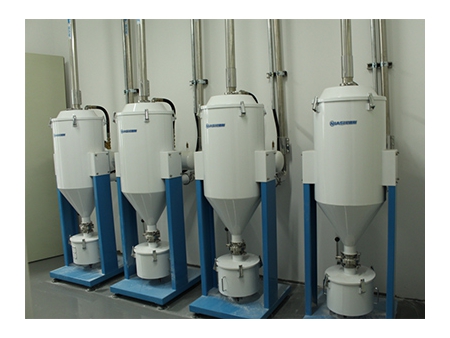

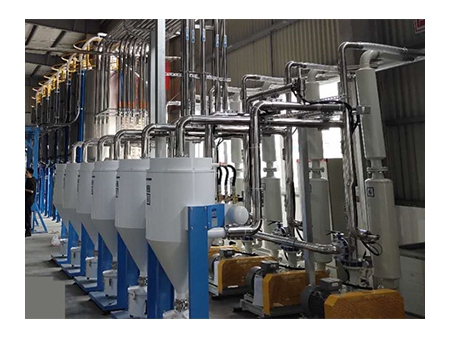

- Central filter and blower can be installed separately outside the production area, thus ensuring a clean and dust-free workshop with less noise level能
- With shock proofing function
Specification:
| Model | Power (kw) | Suction pipe diameter (inch) | Dimension (mm) | Net weight (kg) |
| NSF-100 | 6 | Φ51 | 1310*520*570 | 86 |
| NSF-100 | 10 | Φ76 | 1530*520*570 | 95 |
| NSF-200 | 16 | Φ102 | 1654*610*690 | 125 |
