Dispension Kneader, Rubber Mixer, Plastic Kneader, Rubber Machine

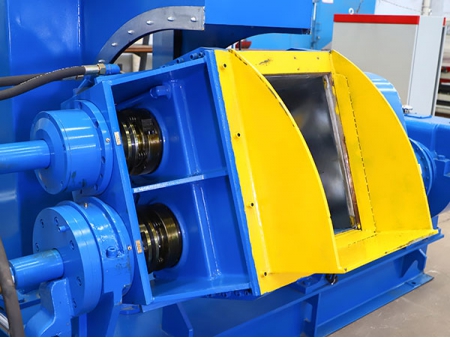

This rubber kneader is designed for plasticizing and mixing operations for rubber and plastic products. The dispension kneader efficiently manipulates the material and provides an effective way to mix the product until it is blended sufficiently. The rubber mixer is suitable for a wide variety of materials, including sticky rubbers and plastics.

Technical Parameters

Model			X(S)N-10X32	X(S)N-20X34	X(S)N-35X30	X(S)N-55X30	X(S)N-75X30	X(S)N-110X30
Total volume of mixing chamber		L	25	45	75	125	180	250
Working volume of mixing chamber		L	10	20	35	55	75	110
Driving motor power		KW	15	22	55 45	75 55	110 95	185
Tilting motor power		KW	1.1	1.5	2.2	2.2	4	4
Tilting angle		°	140	140	140	140	140	140
Rotational speed of the rotor(front/rear)		r/min	32/23.5	34/28	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air		MPa	0.5 ~0.8	0.5~0.8	0.5 ~0.8	0.6 ~0.8	0.6 ~0.8	0.6 ~0.8
Capacity of compressed air		m³/min	≥0.5	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5
Pressure of cooling water(rubber mixing)		MPa	0.2 ~0.4	0.2 ~0.4	0.3 ~0.4	0.3 ~0.4	0.3 ~0.4	0.3 ~0.4
Pressure of heating steam(plastics mixing)		MPa	0.5 ~0.8	0.5 ~0.8	0.5 ~0.8	0.5 ~0.8	0.5 ~0.8	0.5 ~0.8
	L	mm	2580	2630	3200	3280	3330	3930
Overall dimensions	W	mm	1300	1520	1900	1930	2620	3000
	H	mm	2280	2550	2950	3070	3340	3660
Weight		Kg	3300	4500	6500	7500	10500	14500
