Cast Iron T Slotted Surface Plate

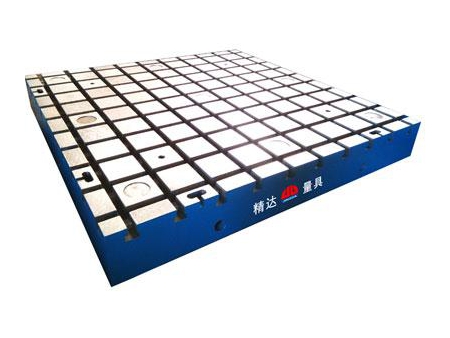

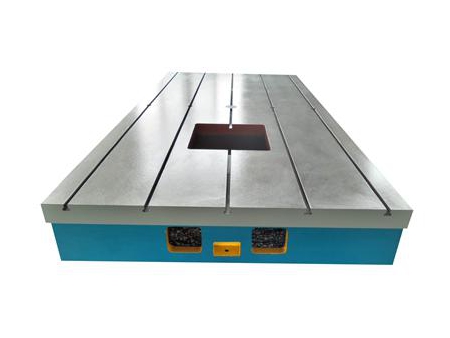

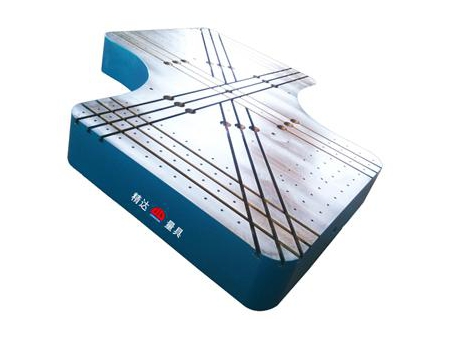

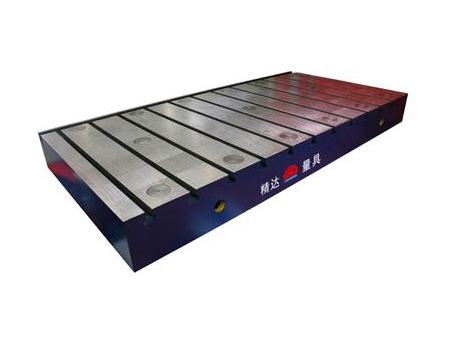

The cast iron T slotted surface plate is a industrial measuring tool mainly used to secure workpiece. Bench workers utilize it for debugging, installing, and maintaining the equipment. This kind of workpiece measuring plate could be manufactured with the precision grade 1, 2, 3, or fine machining. Upon request, it can be made into the rib plate or box type in appearance, and its working surface could be rectangle, square, or round. Additionally, the working surface has been treated with the scraping technology, which allows it to have the V, T, or U-shaped grooves, round holes, slot holes, or others that you desire.
Materials and ProcessingThe raw material of the cast iron surface table is the high-strength cast iron HT200-300 whose surface hardness is of HB170-240. After the two manual handling such as 600℃ to 700℃ artificial annealing as well as 2 to 3 years of natural aging, the T slot base plate perfectly resists abrasion and has stable precision.
SpecificationStandard Size Range: 100mm*100mm-3000mm*8000mm
We can make other sizes on the basis of your actual conditions
Motor assembly test, Vibration test, Rail locomotives installation, Ship fitting, and more.
Parameters| Type(mm) | Precision Grade(μm) | |||
| 1 | 2 | 3 | Final machining | |
| 1200×1000 | 20 | 39 | 96 | |
| 1500×1000 | 24 | 48 | 120 | |
| 1500×1500 | 25 | 50 | 125 | |
| 2000×1000 | 26 | 52 | 129 | |
| 2000×1500 | 56 | 140 | ||
| 2000×2000 | 60 | 152 | 230 | |
| 2500×1500 | 64 | 152 | 230 | |
| 2500×2000 | 68 | 168 | 248 | |
| 2500×2500 | 72 | 180 | 270 | |
| 3000×1000 | 168 | 248 | ||
| 3000×1500 | 174 | 254 | ||
| 3000×2000 | 184 | 275 | ||
| 3000×2500 | 186 | 276 | ||
| 3000×3000 | 210 | 300 | ||
| 4000×1000 | 210 | 300 | ||
| 4000×1500 | 210 | 300 | ||
| 4000×2000 | 219 | 310 | ||
| 4000×2500 | 228 | 340 | ||
| 4000×3000 | 240 | 360 | ||
| 5000×1500 | 249 | 370 | ||
| 5000×2000 | 255 | 375 | ||
| 5000×2500 | 264 | 390 | ||
| 5000×3000 | 287 | 420 | ||
| 6000×1500 | 287 | 420 | ||
| 6000×2000 | 293 | 430 | ||
| 6000×2500 | 300 | 450 | ||
| 6000×3000 | 308 | 460 | ||
| 8000×1500 | 366 | 500 | ||
| 8000×2000 | 370 | 520 | ||
| 8000×2500 | 375 | 530 | ||
| 8000×3000 | 382 | 570 | ||
