DF Series Cast Iron 2/2-Way Solenoid Valve

Request a Quote

Website: http://solenoidvalve-en.com/1-25-cast-iron-2-2-way-solenoid-valve-df-series.html

Direct Acting, Normally Closed
Port Size: 1"–4" (flanged)
Fluid Temperature: -5°C to 80°C (120℃ optional)
Operating Pressure: 0–1.0MPa
Media: air, water, oil, gas

DF series is a heavy-duty cast-iron flanged solenoid valve specifically designed for water supply and municipal engineering projects. The valve body is made of high-quality cast iron with a special anti-corrosion coating, providing excellent anti-rust and weather resistance. The valve meets IP65 protection standards, effectively resisting moisture and water spray, and maintaining stable performance in harsh environments.

Features

High-quality cast iron body with special anti-corrosion surface treatment, ensuring strong rust resistance and long service life in humid and corrosive environments.
Standard flange connection provides stable installation and excellent sealing to prevent leakage
Reinforced structure resists water hammer effects and pressure fluctuations, ensuring stable and reliable operation.
Direct-acting design with low flow resistance, large flow capacity, and high tolerance for media impurities.
Easy maintenance and operation with multiple flange sizes (1-4 in) and pressure options (0–1.0MPa) for flexible engineering applications

Applications

This cast iron solenoid valve is mainly used in environments that are continuously exposed to a humid environment or outdoors, such as:

Water treatment plants
Pumping stations
Water transmission systems
Municipal irrigation systems (e.g., drinking and wastewater)
Firewater systems
Industrial water supply systems

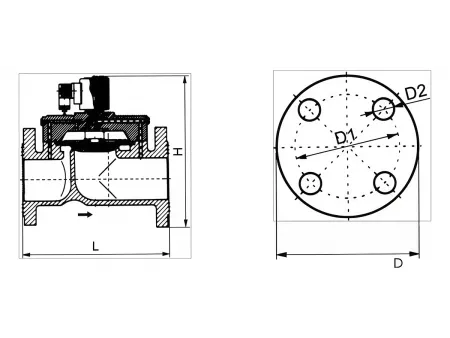

Dimensions (mm)

Model	L	H	D (Flange)	D1	D2
DF040-40-A2-D	165	196	150	Ø110	4-Ø18
DF050-50-A2-D	195	200	165	Ø125	4-Ø18
DF065-80-A2-D	256	280	185	Ø145	4-Ø18
DF080-80-A2-D	277	287	200	Ø160	8-Ø18
DF100-100-A2-D	350	330	220	Ø180	8-Ø18
DF125-125-A2-D	425	437	250	Ø210	8-Ø18
DF150-150-A2-D	450	460	285	Ø240	8-Ø22
DF200-200-A2-D	560	547	340	Ø295	12-Ø22
Note: Valves must be mounted in horizontal position.

Specifications

Category	2/2-way solenoid valves
Mode of operation	Direct acting	Port size	1"–4" (flanged)
Series	DF	Function	Normally closed (NC)
Body material	Cast iron	Wiring	DIN connector
Control method	Solenoid valve	Protection level	IP65
Operating pressure	0-1.0MPa	Mounting	Bracket required
Sealing material	NBR	Recommended installation method	Horizontally
Fluid temperature	-5°C to 80°C (120℃ optional)	Thread options	Flanged
