Plate
Request a Quote
View All: http://sinodrills.org/4-4-plate.html

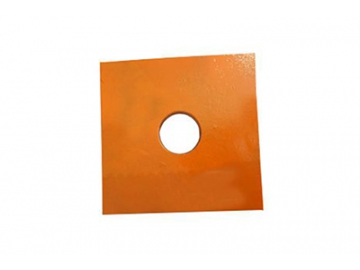

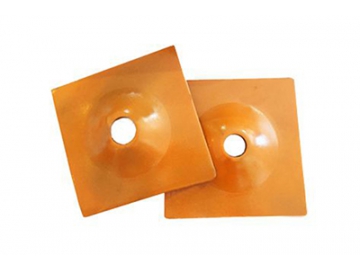

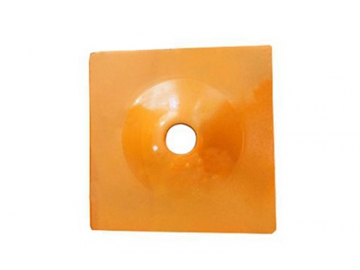

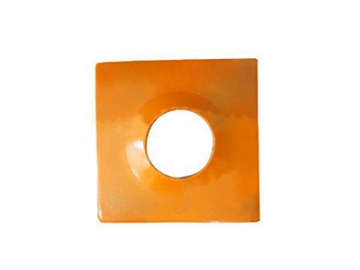

The plate transmits load force from the self-drilling anchor system to the work face.
Features
Plate specifications are customizable.
ApplicationsPre-supporting, micropiling for foundation underpinning, slope anchorage, etc.
Parameters
| Size | Domed Plate | Solid Plate | ||||
| A x A x B (mm) | D(mm) | Weight (kg) | A x A x B (mm) | D(mm) | Weight (kg) | |
| R25 | 150x150x 8 | 30 | 1.4 | x | x | x |
| R32 | 200x200x10 | 35 | 3.2 | x | x | x |
| R32 | 200x200x12 | 35 | 3.8 | x | x | x |
| R38 | 200x200x12 | 41 | 3.8 | x | x | x |
| R51 | x | x | x | 200x200x30 | 56 | 9 |
| R51 | x | x | x | 250x250x40 | 56 | 18.5 |
| T76 | x | x | x | 250x250x40 | 80 | 18 |
| T76 | x | x | x | 250x250x60 | 80 | 27 |
| T30 | 200x200x 8 | 36 | 2.5 | |||
| T40 | 200x200x12 | 56 | 3.5 | |||
| T52 | x | x | x | 220x220x35 | 65 | 12 |
| T73 | x | x | x | 250x250x40 | 80 | 18 |
| T103 | x | x | x | 240x240x50 | 110 | 19 |
| Note: | Other dimensions are available upon request. | |||||
Industries We Serve
Our rock drilling equipment can be applied in various industries, doing rock drilling and crushing duties for digging, blasting, etc.
We mainly offer 4 series of rock drilling tools: top hammer drilling tools, down-the-hole (DTH) drilling tools, self-drilling anchor system and drag bits.
Tunnelling
Water Well，Geothermal well drilling
Quarry/Aggregate
Mining
Construction
