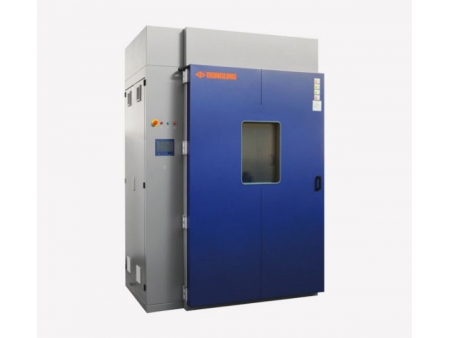

VOC Accelerated Evaporation Chamber

VOC Accelerated Evaporation Chamber
Request a Quote

VOC accelerated evaporation chamber can extract free VOC/formaldehyde from the products through vacuum extraction and reduce release of such harmful material during the use of products.
VOC accelerated evaporation chamber is widely used in automotive, furniture and raw materials industries. It can also be used for drying if added with a function module.

When the VOC performance of entire vehicle does not meet national standards, automotive interior trim parts manufacturers need to cooperate with the host factory to improve or change substandard interior parts to meet certain requirements. However, as the mould, material and process have been determined, it is difficult, costly and inefficient to do improvement. To solve this problem, Simplewell designed the VOC acceleration evaporation chamber, which helps improve the vehicle performance by accelerating the evaporation of VOC from the finished or semi-finished product without the need to change production process.

Specifications
Chamber Steel plate fully dense welding
Dimension of inner chamber (W* D* H) 1.5m*2.5m*2.0m (Specific dimensions can be customized)
Pressure range Normal pressure to 1kPa
Vacuum degree Min 1KPa
Pressure relief time Automatic pressure relief control or rapid pressure relief at set times
Controller Mitsubishi PLC
Man-machine interface 7-inch industrial touch screen
Pressure Real-time control and display of pressure in chamber
Vacuum system Single or double vacuum pump
Filter exhaust VOC, formaldehyde filtration device (filtration material as consumables)
Power supply AC380V 3φ 4W 50Hz
